Boiler quality plates, also known as pressure vessel plates, are produced to make supreme quality carbon steel plates intended for use in welded pressure vessels where notch toughness is important. The steel is killed and can be normalized as it conforms to fine austenitic grain size requirements.

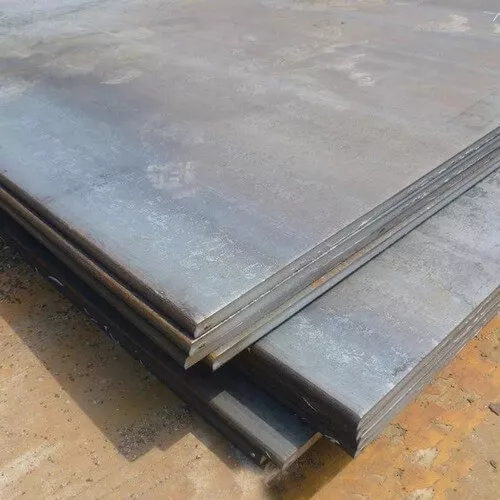

Boiler steel plate

Boiler steel plate application

Boiler plate is mainly used to manufacture superheater, main steam pipe and boiler fire chamber heating surface used in hot rolled medium thick plate material. Boiler steel plate is one of the very key materials in boiler manufacturing, mainly refers to the hot rolled special carbon steel and low alloy heat resistant steel medium thick steel material used to manufacture boiler shell, pot drum, box end cover, hanger and other important parts.

Main characteristics of boiler steel plate

1、The material has high yield strength in a certain temperature range (medium normal temperature and high temperature).

2、Material with enough toughness, manufacturing or use will not happen brittle failure accidents;
3、The material has a small strain aging sensitivity, especially in the corresponding working temperature region, to ensure a certain value of aging impact work;
4、The material has low notch sensitivity, which can prevent cracks in welding, opening and local stress concentration area.
5、The material has good welding performance;
6、The material has good microstructure, no white spots and cracks are allowed.

Boiler steel plate chemical composition

Grade	C	Si	Mn	P	S	Cu
ASTM A283 Grade A	0.14	0.15-0.40	0.9	0.035	0.04	0.2
ASTM A283 Grade B	0.17	0.15-0.40	0.9	0.035	0.04	0.2
ASTM A283 Grade C	0.24	0.15-0.40	0.9	0.035	0.04	0.2
ASTM A283 Grade D	0.27	0.15-0.40	0.9	0.035	0.04	0.2

Boiler steel plate mechanical property

Grade	Yield Strength (MPa)	Ultimate Tensile Strength (MPa)	Elongation at Break (%)
ASTM A283 Grade A	165	310 - 415	27
ASTM A283 Grade B	185	345 - 450	25
ASTM A283 Grade C	205	380 - 515	22
ASTM A283 Grade D	230	415 - 550	20

Boiler steel plate Specification

Specification
Steel Grade	GB: Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, 255B, Q275, Q295A, Q295B, Q345B,Q345C,Q345D,Q345E,Q390A,Q390B,Q390C,Q390D,Q390E,Q420,Q420B,Q420C,Q420DQ420E,Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D,Q620E,Q690D,Q690E EN: S185, S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade 42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80 JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE
Standard	GB/T709-2006, ASTM A36, JIS G4051, DIN EN 10083, SAE 1045, ASTM A29M
Thickness	0.15mm-300mm
Width	500-2250mm
Length	1000mm-12000mm or according to customer's special request
Tolerance	Thickness: +/-0.02mm, Width:+/-2mm
MOQ	1 Ton
Application	1.Automobile, Bridges, Buildings. 2.Machinery, Pressure vessel industries. 3.Ship building, Engineering construction. 4.Mechanical manufacturing, Pavement slab, ect.
Package	Bundle with steel strip,Container shipping
Capacity	200000 tons /month
Mill MTC	can be supplied before shipment
Inspection	The Third Party inspection can be accepted BV
