Hydraulic Cylinder Barrel
Standing inventory of 2,000 tons, contact us via message or email for details.

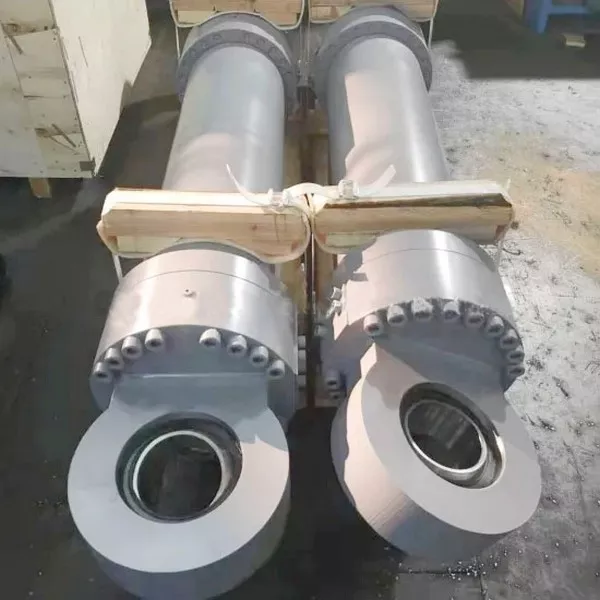

Hydraulic Cylinder Barrel

Due to the residual compressive stress in the surface layer, the rolling machining is conducive to the sealing of micro-cracks and the propagation of erosion is hindered. Thus, the surface corrosion resistance can be improved, and the fatigue crack generation or expansion can be delayed, so as to improve the cylinder fatigue strength.

Hydraulic Cylinder Barrel processing method

Due to the residual compressive stress in the surface layer, the rolling machining is conducive to the sealing of micro-cracks and the propagation of erosion is hindered. Thus, the surface corrosion resistance can be improved, and the fatigue crack generation or expansion can be delayed, so as to improve the cylinder fatigue strength. By rolling forming, a cold working hardening layer is formed on the rolling surface, which reduces the elastic and plastic deformation of the contact surface of the grinding pair, thus improving the wear resistance of the inner wall of the cylinder and avoiding the burn caused by grinding. After rolling, the reduction of surface roughness can improve the fit property.

Hydraulic Cylinder Barrel description

Hydraulic cylinder is the executive component of hydraulic transmission system, it is the energy conversion of hydraulic energy into mechanical energy. The hydraulic motor is to achieve continuous rotary motion, and the hydraulic cylinder is to achieve reciprocating motion. Hydraulic cylinder structure type has piston cylinder, plunger cylinder, swing cylinder three categories, piston cylinder and plunger cylinder reciprocating linear motion, output speed and thrust, swing cylinder reciprocating swing, output angular speed (speed) and torque. In addition to the single use of hydraulic cylinders, but also two or more combined or combined with other mechanisms used. To fulfill a particular function. Hydraulic cylinder is simple in structure and reliable in operation. It has been widely used in hydraulic system of machine tools.

Hydraulic Cylinder Barrel chemical composition

Speci -cation Grade Chemical Composition [%]
C Mn P S Si Cr Mo Cu Ni V
Min Max. Min Max. Max. Max. Min. Max Min. Max Min. Max Max Max Max
ASTM A-53 A - 0.25 - 0.95 0.05 0.045 - - - 0.4 - 0.15 0.40 for S 0.4 0.08
B - 0.3 - 1.2 0.05 0.045 - - - 0.4 - 0.15 0.40 for S 0.4 0.08
ASTM A-106 A - 0.25 0.27 0.93 0.035 0.035 0.1 - - 0.4 - 0.15 0.4 0.4 0.08
B - 0.3 0.29 1.06 0.035 0.035 0.1 - - 0.4 - 0.15 0.4 - 0.08
c - 0.35 0.29 1.06 0.035 0.035 0.1 - - 0.4 - 0.15 0.4 0.08
ASTM A333 & A334 1 - 0.3 0.4 1.06 0.025 0.025 - - - - - - - - -
6 - 0.3 0.29 1.06 0.025 0.025 0.1 - - - - - - - -

Hydraulic Cylinder Barrel Mechanical Property

Speci -cation Grade Mechanical Properties
Yield Strength Tensile Strength % Elongation (G.L. 50 mm WT 8 mm) e (min.)
Min. Min.
PSI MPa PSI MPa
ASTM A-53 A 30,000 205 48,000 330 e=625000 A02/U09
B 35,000 240 60,000 415
ASTM A-106 A 30,000 205 48,000 330 35L / 25T
B 35,000 240 60,000 415 30L / 16.5T
c 40,000 275 70,000 485 30L / 16.5T
ASTM A333 & A334 1 30,000 205 55,000 380 35
6 35,000 240 60,000 415 30

Hydraulic Cylinder Barrel Specification

Product Name



Hydraulic Cylinder Barrel/Tube

Material

ST52, CK45, 4140, 16Mn, 42CrMo, E355, Q345B, Q345D, Stainless Steel 304/316, Duplex 2205,etc.

Delivery Condition



BK, BK+S, GBK, NBK

Straightness:



≤ 0.5/1000

Roughness:



0.2-0.4 u

Diameter6mm - 1000mm
Length1000mm - 12000mm

Tolerance EXT:



DIN2391, EN10305, GB/T 1619

Tolerance INT:

H7, H8, H9

ShapeRound
Technologyperforation /acid pickling / phosphorization /cold drawn /cold rolled /annealing/ anaerobic annealing

Protection:

anti-rust oil on inside and outside surface, plastic caps in both ends.

UsedHydraulic Cylinders

Packing:



bundle with steel strip and PE sheet package or wooden case.

Hot sale product

wholesale hydraulic steel pipe factories hydraulic steel pipe factory
wholesale hydraulic steel pipe hydraulic steel pipe factories
steel pipe for hydraulics hydraulic stainless steel pipe for sale
stainless steel hydraulic pipe suppliers china hydraulic steel pipe supplier
stainless steel hydraulic pipe manufacturers china hydraulic steel pipe manufacturers
stainless steel hydraulic pipe manufacturer china hydraulic steel pipe factory

Application

Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.

Oil and GasKuwait is a country of petroleum resources with abundant, oil factory also is very broad, respectively, the oil plant are mainly used for refining oil and oil processing.
MarineSubmarine pipelines carry such things as domestic water, waste water, electrical lines, gas lines, communication lines, and outfall or intake systems.
ConstructionBridge materials with high strength, low cost for selecting the main basis, give priority to with development of the traditional steel and concrete.
EnergyEngineering is mainly aiming at the water pollution and solid waste pollution. using the steel pipe to filtrate in order to improve the quality of water.

Exporting country

We are a well known worldwide supply and export Hydraulic Cylinder Barrel in following countries:,Italy, Philippines, France,Ireland, Portugal, Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Libya, Romania, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Ghana, Slovakia, Germany, Saudi Arabia, Afghanistan, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece, Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus, Finland, Gabon, Iran, Canada, Argentina, Lebanon.

Factory Display

Factory Display

Tianjin tisco is a one-stop steel pipe supplier for global manufacturers.
