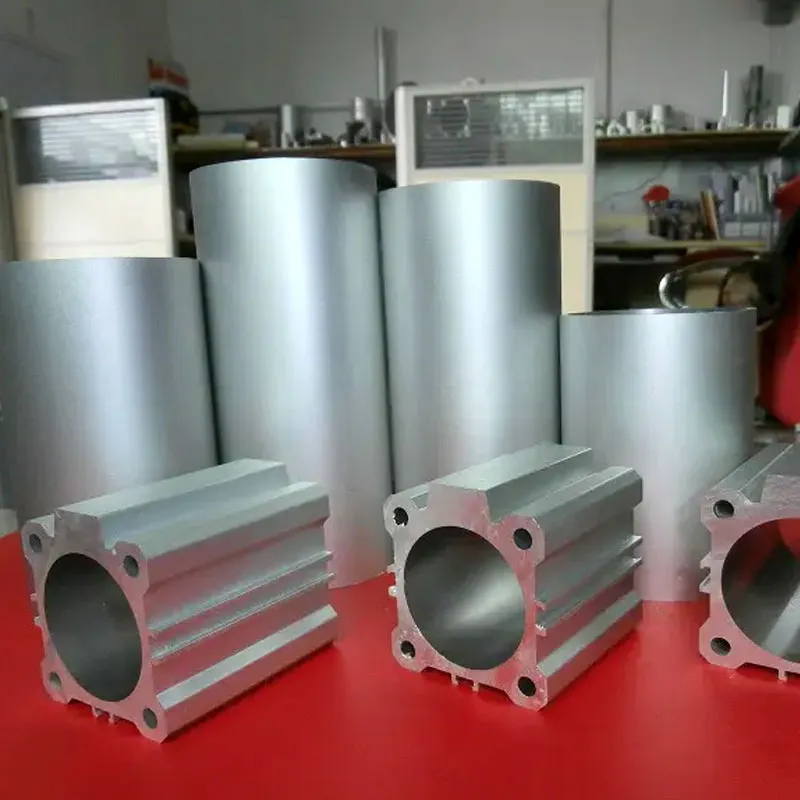

air cylinder tube
air cylinder tube description
Cylinder tube is a kind of high precision steel tube material after cold drawing or hot rolling. Because there is no oxide layer on the inner and outer walls of precision steel pipe, no leakage under high pressure, high precision, high finish, cold bending without deformation, flaring, flattening without cracks and so on, it is mainly used for the production of pneumatic or hydraulic components, such as cylinder or cylinder, can be seamless pipe. The chemical composition of the cylinder tube is carbon C, silicon Si, manganese Mn, sulfur S, phosphorus P, chromium Cr.
air cylinder tube advantage
1、 improve the surface roughness, roughness can basically reach Ra≤0.08µ m or so. 2、correct roundness, ellipticity can be less than 0.01mm. 3、 improve the surface hardness, the force deformation is eliminated, hardness increase HV≥4° 4、after processing residual stress layer, improve the fatigue strength by 30%. 5、 improve the quality of fit, reduce wear, prolong the service life of parts, but the processing cost of parts is reduced.
air cylinder tube chemical composition
| Grade | C | Cu | Mn | P | S |
| ASTM A242 TP1 | ≤0.15 | ≤0.20 | ≤1.00 | ≤0.15 | ≤0.05 |
air cylinder tube mechanical property
| Grade | Yield Strength (MPa) | Ultimate Tensile Strength (MPa) | Elongation at Break (%) |
| ASTM A242 TP1 | 345 | 480 | 21 |
air cylinder tube specification
Standard | API, ASTM, BS, DIN, GB, JIS | ||
Outside Diameter | 21.3-1420mm | ||
Wall Thickness | 2.11-300mm | ||
Dia Tolerance | Control with in the standard, OD:+-1%, WT:+-10% | ||
| 10#,20#,45#,Q235,Q345,Q195,Q215,Q345C,Q345A | ||
ASTM A53A/A53B/ A178C/A106B API5L | |||
ST37,ST37-2,DIN 1629 ST35, ST45,DIN 17175 ST35.8,DIN 17175 19Mn5 | |||
16Mn,Q345B,T1,T2,T5,T9,T11,T12,T22,T91,T92,P1,P2,P5,P9,P11,P12,P22,P91,P92,15CrMO,Cr5Mo,10CrMo910,12CrMo,13CrMo44,30CrMo,A333 | |||
Gr.B,X42,X46,X52,X60,X65,X70,X80,X100 | |||
Inspection | ISO,BV,SGS,MTC | ||
Packing | Steel strip packed. Standard Export Seaworthy Package.Suit forall kinds of transport,or as required | ||
| Widely used in Structure, Accessorize,Construction, | ||
MOQ | 1 ton,sample order accepted | ||
Shipment time | Within 7-10 workdays after receiving deposit or L/C | ||
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.

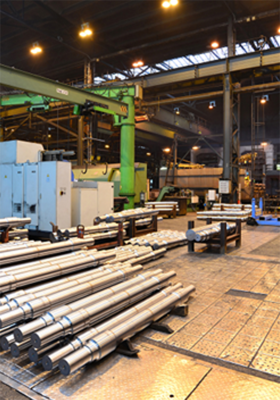

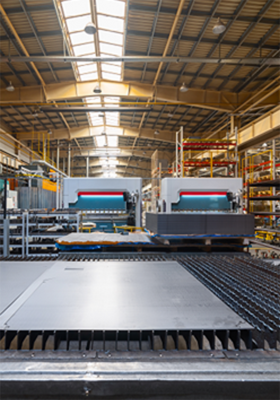

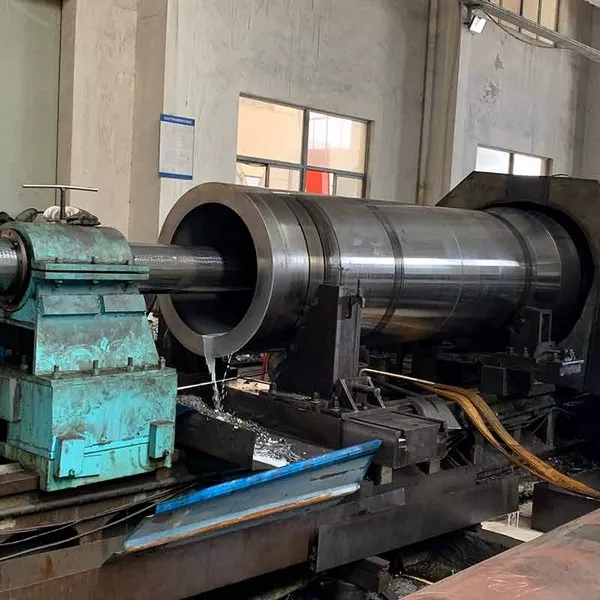

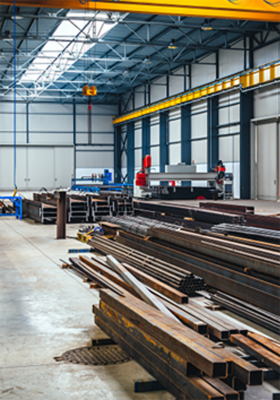

Factory Display
Tianjin tisco is a one-stop steel pipe supplier for global manufacturers.
