Large bore cylinder
Strong Strength, High-Quality Products

Large bore cylinder description

The cylinder refers to the cylindrical metal parts that guide the piston in a straight reciprocating motion in the cylinder. The air in the engine cylinder expands to convert heat into mechanical energy; The gas is compressed by the piston in the compressor cylinder and the pressure is raised.


Large bore cylinder classification

(1) Single acting cylinder: only one end of the piston rod, from the piston side of the gas supply energy to produce pressure, pressure to promote the piston thrust out, by the spring or weight back.

② Double acting cylinder: alternate gas supply from both sides of the piston, output force in one or two directions.
(3) Diaphragm type cylinder: with diaphragm instead of piston, only in one direction output force, with spring reset. It has good sealing performance, but short travel.
④ Impact cylinder: This is a new type of component. It converts the pressure energy of the compressed gas into the kinetic energy of the piston moving at a high speed (10 ~ 20 m/s), so as to do work.
⑤ Rodless cylinder: general term for cylinder without piston rod. There are magnetic cylinder, cable cylinder two categories.


Large bore cylinder chemical composition

Speci -cation Grade Chemical Composition [%]
C Mn P S Si Cr Mo Cu Ni V
Min Max. Min Max. Max. Max. Min. Max Min. Max Min. Max Max Max Max
ASTM A-53 A - 0.25 - 0.95 0.05 0.045 - - - 0.4 - 0.15 0.40 for S 0.4 0.08
B - 0.3 - 1.2 0.05 0.045 - - - 0.4 - 0.15 0.40 for S 0.4 0.08
ASTM A-106 A - 0.25 0.27 0.93 0.035 0.035 0.1 - - 0.4 - 0.15 0.4 0.4 0.08
B - 0.3 0.29 1.06 0.035 0.035 0.1 - - 0.4 - 0.15 0.4 - 0.08
c - 0.35 0.29 1.06 0.035 0.035 0.1 - - 0.4 - 0.15 0.4 0.08
ASTM A333 & A334 1 - 0.3 0.4 1.06 0.025 0.025 - - - - - - - - -
6 - 0.3 0.29 1.06 0.025 0.025 0.1 - - - - - - - -

Large bore cylinder mechanical property

Speci -cation Grade Mechanical Properties
Yield Strength Tensile Strength % Elongation (G.L. 50 mm WT 8 mm) e (min.)
Min. Min.
PSI MPa PSI MPa
ASTM A-53 A 30,000 205 48,000 330 e=625000 A02/U09
B 35,000 240 60,000 415
ASTM A-106 A 30,000 205 48,000 330 35L / 25T
B 35,000 240 60,000 415 30L / 16.5T
c 40,000 275 70,000 485 30L / 16.5T
ASTM A333 & A334 1 30,000 205 55,000 380 35
6 35,000 240 60,000 415 30

Large bore cylinder specification

Item

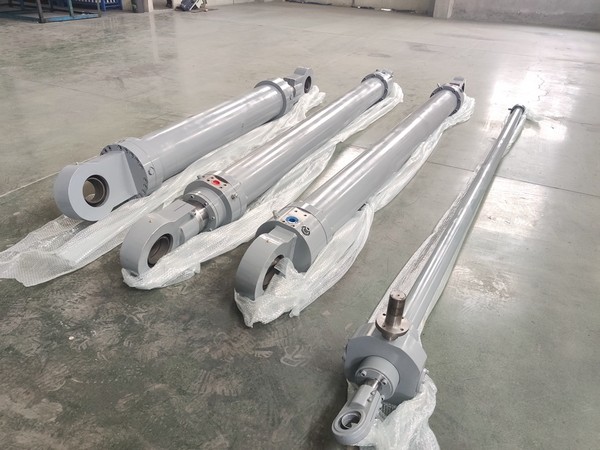

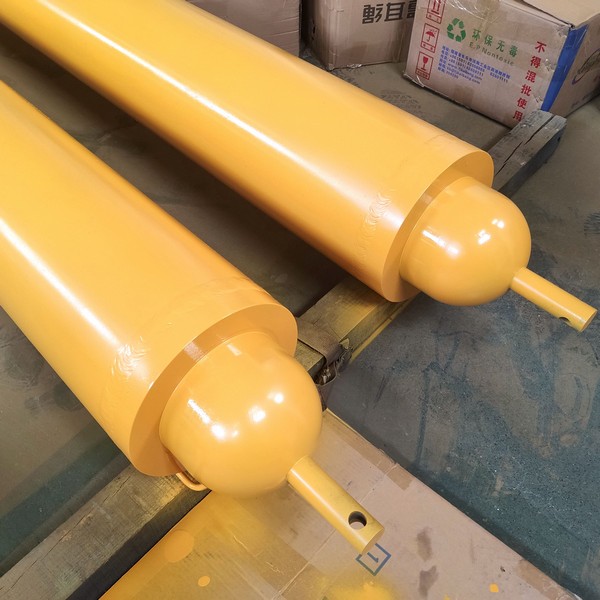

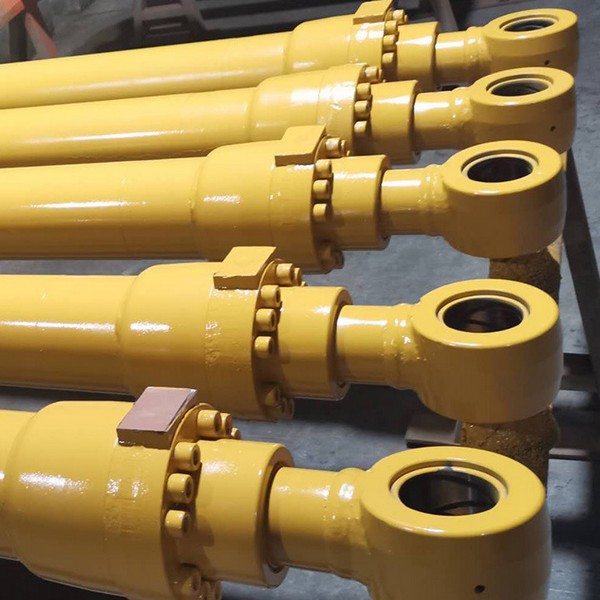

Large Hydraulic Cylinder

Model

Large Hydraulic Cylinder

Material

Steel

Mounting Type

Front flange

Power

Hydraulic

Hardness

HRC45-55

Chrome Thickness

0.05mm

Stroke

1650mm

Shaft Diameter

40 - 500mm

W.P.

30Mpa

Structure

Piston cylinder

Certificate

ISO 9001:2008, CE

OEM/ODM

Welcome

Packing And Delivery

1 - 20“GP

Application

Construction, metallurgical, mining, agricultural, forestry machinery, etc.

Production workshop
production workshop
production workshop
Production workshop
production workshop
production workshop
Production workshop
production workshop
production workshop
Production workshop
production workshop
production workshop

Application

Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.

Oil and GasKuwait is a country of petroleum resources with abundant, oil factory also is very broad, respectively, the oil plant are mainly used for refining oil and oil processing.
MarineSubmarine pipelines carry such things as domestic water, waste water, electrical lines, gas lines, communication lines, and outfall or intake systems.
ConstructionBridge materials with high strength, low cost for selecting the main basis, give priority to with development of the traditional steel and concrete.
EnergyEngineering is mainly aiming at the water pollution and solid waste pollution. using the steel pipe to filtrate in order to improve the quality of water.
