Pressure vessel steel plate application
Pressure vessels are very versatile. It is in the petrochemical industry, energy industry, scientific research and military industry and other sectors of the national economy are playing an important role in the equipment. Pressure vessels are generally composed of six parts: cylinder, head, flange, sealing element, opening and nozzle, support and so on. In addition, it is equipped with safety devices, gauges and internal parts for different production processes.
1、Crude Oil Storage Tanks2、Natural Gas Storage Tanks3、Chemicals and Liquid Storage Tanks4、Firewater Tanks5、Diesel Storage Tanks6、Gas Cylinders for Welding7、Gas Cylinders for Cooking in peoples daily life8、Oxygen Cylinders for Diving
Pressure vessel steel plate description
1、Pressure vessel steel plate is a general term used for various steel types that are carbon steels and alloy steels. Multi Metals (India) is a leading manufacturer and supplier of the different types of the Pressure vessel steel plate products. The materials come under different specifications, grades and classes according to the application needs. The application of the Pressure vessel steel plate are used in crude oil storage tanks, oxygen cylinders, firewater tanks, diesel storage tanks, gas cylinders and many other applications.
2、The Pressure vessel steel plate can operate under high temperature and pressure conditions. The plates are used in power plant, boiler, heat exchanger and condenser applications as well. The Pressure vessel steel plate is made as normalized and heat treated for high temperature and high pressure applications with high tensile and yield strength than ordinary stainless steel. The Pressure vessel steel plate can contain chromium, molybdenum, nickel and other materials for stabilization, corrosion resistance and strength.
Pressure vessel steel plate chemical composition
| Grade | C | Mn | Si | P | S | Nb | V | Al | Ti | Cr | Mo | N | Ni |
| EN10025-3 S275N | 0.2 | 0.45-1.60 | 0.45 | 0.035 | 0.03 | 0.06 | 0.07 | 0.015 | 0.06 | 0.35 | 0.13 | 0.017 | - |
| EN10025-3 S275NL | 0.2 | 0.45-1.60 | 0.45 | 0.03 | 0.035 | 0.06 | 0.07 | 0.015 | 0.06 | 0.35 | 0.13 | 0.017 | - |
| EN10025-3 S355N | 0.2 | 0.85-1.75 | 0.55 | 0.035 | 0.03 | 0.06 | 0.14 | 0.015 | 0.06 | 0.35 | 0.13 | 0.017 | 0.55 |
| EN10025-3 S355NL | 0.2 | 0.95-1.75 | 0.55 | 0.03 | 0.025 | 0.06 | 0.14 | 0.015 | 0.06 | 0.35 | 0.13 | 0.017 | 0.85 |
| EN10025-3 S420N | 0.2 | 0.95-1.80 | 0.65 | 0.035 | 0.03 | 0.06 | 0.22 | 0.015 | 0.06 | 0.35 | 0.13 | 0.027 | 0.85 |
| EN10025-3 S420NL | 0.22 | 0.95-1.80 | 0.65 | 0.03 | 0.025 | 0.06 | 0.22 | 0.015 | 0.06 | 0.35 | 0.13 | 0.027 | 0.85 |
| EN10025-3 S460N | 0.22 | 0.95-1.80 | 0.55 | 0.035 | 0.03 | 0.06 | 0.22 | 0.015 | 0.06 | 0.35 | 0.13 | 0.027 | 0.85 |
| EN10025-3 S460NL | 0.22 | 0.95-1.80 | 0.65 | 0.03 | 0.025 | 0.06 | 0.22 | 0.015 | 0.06 | 0.35 | 0.13 | 0.027 | 0.85 |
Pressure vessel steel plate mechanical property
| Grade | Yield Strength (MPa) | Ultimate Tensile Strength (MPa) | Elongation at Break (%) |
| EN10025-3 S275N | 275 | 370-510 | 23 |
| EN10025-3 S275NL | 275 | 370-510 | 23 |
| EN10025-3 S355N | 355 | 470-630 | 21 |
| EN10025-3 S355NL | 355 | 470-630 | 21 |
| EN10025-3 S420N | 420 | 520-680 | 18 |
| EN10025-3 S420NL | 420 | 520-680 | 18 |
| EN10025-3 S460N | 460 | 540-720 | 17 |
| EN10025-3 S460NL | 460 | 540-720 | 17 |
Pressure vessel steel plate specification
Width | 1000mm/1219mm/1240mm/1500mm/2000mm or as customer's requirements | |||
Thickness | Cold rolled:0.1~4.0mm | |||
Hot rolled:4mm~100mm | ||||
Length | 100mm to 12000mm or as customer's request | |||
Surface | N0.1, N0.4, 2D, 2B, HL, BA, 6K, 8K, Mirror,etc | |||
Material | Q195,Q215 A,Q215 B,Q235 A,Q235 B,Q235 C, | |||
Standards | AISI ASTM JIS SUS DIN GB | |||
Certifications | ISO 9001 | |||
Packing | Industry standard packaging or according to client's requirement | |||
Payment | T/T,L/C,Western Union,Paypal,Apple Pay,Google Pay,D/A,D/P,MoneyGram | |||
Delivery time | Up to order quantity | |||

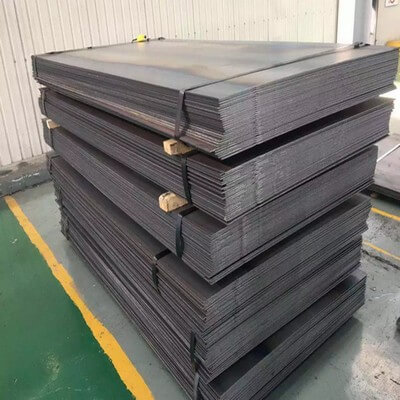

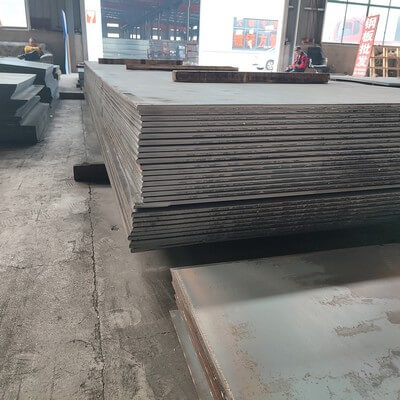

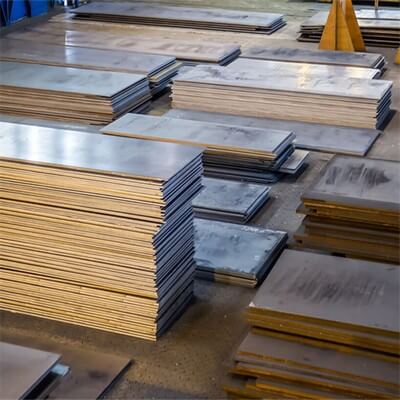

production workshop
production workshop
production workshop
production workshop
