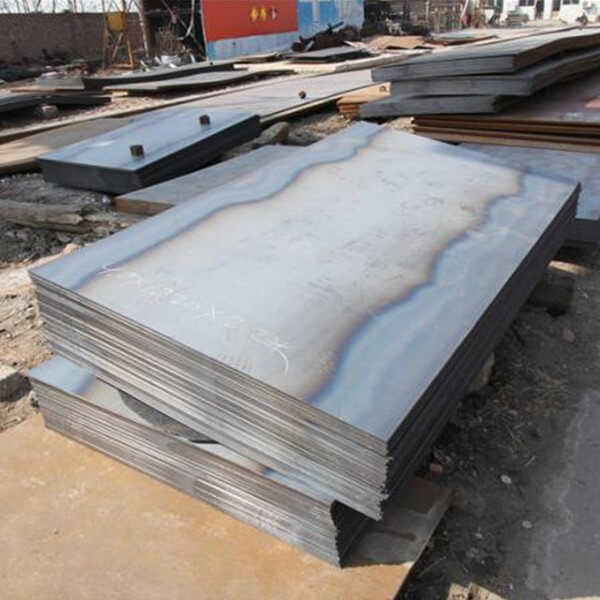

NM 600 Wear Resistant Steel Plate丨Wear Resistant Steel Product
NM600 is a high-strength wear-resistant steel plate. Wear-resistant steel plate (Wear Resistant Steel Plate) refers to a special plate product specially used under the conditions of large-area wear. The commonly used wear-resistant steel plate is a plate product made of an alloy wear-resistant layer with a certain thickness of high hardness and excellent wear resistance on the surface of ordinary low-carbon steel or low-alloy steel with good toughness and plasticity through surfacing welding. In addition, there are cast wear-resistant steel plates and alloy quenched wear-resistant steel plates
Product Specification
item | value |
Place of Origin | China |
Shandong | |
Application | making cold rolled steel products, making small tools, Construction Machinery and equipment, loading and unloading machinery, Construction Machinery, Metallurgical Machinery, mining machinery, thermal power equipment |
Type | Steel Sheet |
Thickness | 3-60mm |
Standard | GB |
Width | 0.5-2.2m |
Length | 2.2-12m |
Certificate | ISO9001 |
Grade | carbon steel |
Tolerance | ±1% |
Processing Service | Welding, Cutting |
Skin Pass | Yes |
Alloy Or Not | Is Alloy |
Delivery Time | within 7 days |
Carbon Steel | NM360/NM400/NM450/NM550/NM600/NM650 |
Wear Resistant Steel Plate Chemical composition
| Grade | Chemical Composition / % | ||||||||||
| C | Si | Mn | P | S | Cr | Ni | Mo | Ti | B | Als | |
| ≤ Not More Than | Range | ≥ | |||||||||
| NM300 | 0.23 | 0.7 | 1.6 | 0.025 | 0.015 | 0.7 | 0.5 | 0.4 | 0.05 | 0.0005~0.006 | 0.01 |
| NM360 | 0.25 | 0.7 | 1.6 | 0.025 | 0.015 | 0.8 | 0.5 | 0.5 | 0.05 | 0.0005~0.006 | 0.01 |
| NM400 | 0.3 | 0.7 | 1.6 | 0.025 | 0.01 | 1 | 0.7 | 0.5 | 0.05 | 0.0005~0.006 | 0.01 |
| NM450 | 0.35 | 0.7 | 1.7 | 0.025 | 0.01 | 1.1 | 0.8 | 0.55 | 0.05 | 0.0005~0.006 | 0.01 |
| NM500 | 0.38 | 0.7 | 1.7 | 0.02 | 0.01 | 1.2 | 1 | 0.65 | 0.05 | 0.0005~0.006 | 0.01 |
| NM550 | 0.38 | 0.7 | 1.7 | 0.02 | 0.01 | 1.2 | 1 | 0.7 | 0.05 | 0.0005~0.006 | 0.01 |
| NM600 | 0.45 | 0.7 | 1.9 | 0.02 | 0.01 | 1.2 | 1 | 0.8 | 0.05 | 0.0005~0.006 | 0.01 |
Wear Resistant Steel Plate Mechanical Properties
| Grade | Thickness | Tensile Strength | Elongation | Impact Energy | Brinell Hardness | ||||||
| mm | Rm / Mpa | A50mm / % | KV2 / J | HBW | |||||||
| NM300 | ≤80 | ≥1000 | ≥14 | ≥24 | 270-330 | ||||||
| NM360 | ≤80 | ≥1100 | ≥12 | ≥25 | 330-390 | ||||||
| NM400 | ≤80 | ≥1200 | ≥10 | ≥26 | 370-430 | ||||||
| NM450 | ≤80 | ≥1250 | ≥7 | ≥27 | 420-480 | ||||||
| NM500 | ≤70 | - | - | - | ≥470 | ||||||
| NM550 | ≤70 | - | - | - | ≥530 | ||||||
| NM600 | ≤60 | - | - | - | ≥570 |

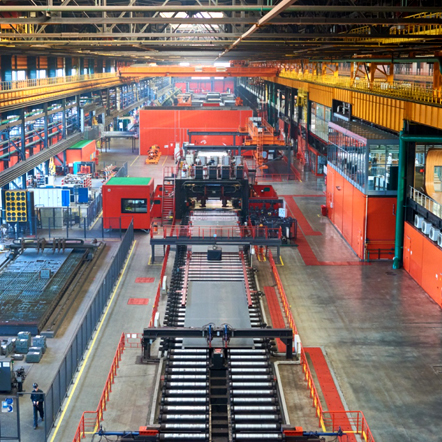

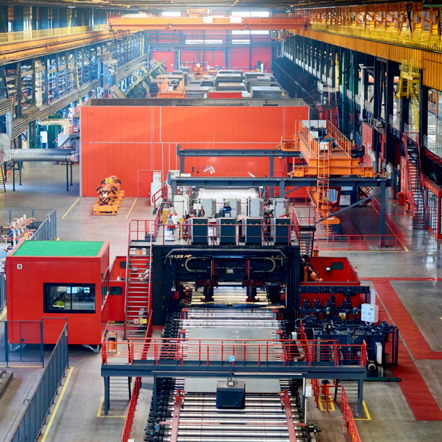

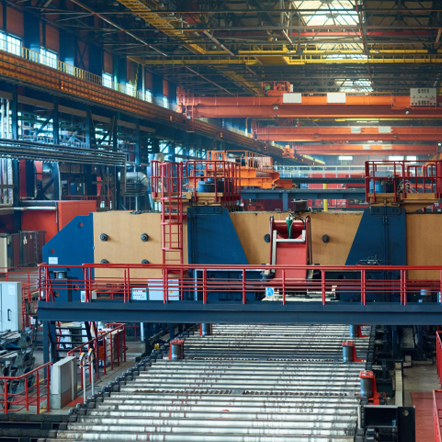

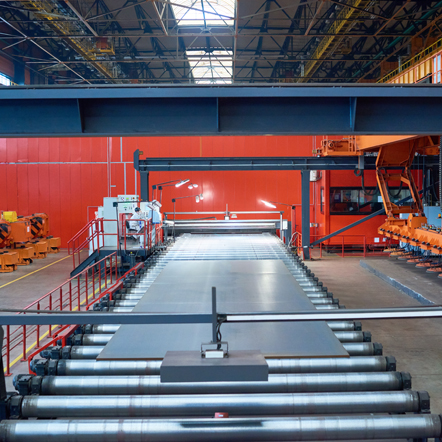

production workshop
production workshop
production workshop
production workshop
Hot Products
| 1035 carbon steel plate | 1075 carbon steel plate |
| 1040 carbon steel plate | 1075 high carbon steel plate |
| 1045 carbon steel plate | 1080 carbon steel plate |
| 1049 carbon steel plates | 12 x1 8 carbon steel plate |
| 1055 carbon steel plate | 1215 carbon steel plate |
| 1060 carbon steel plate | 1ft by 1ft high carbon steel plate |
| 1060 carbon steel plates | 8 x 4 high carbon steel plate |
| 1070 high carbon steel plate | a36 carbon steel plate suppliers |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
Export area
We are a well known worldwide supply and export NM600 wear-resistant steel plate in following countries：,Italy, Philippines, France，Ireland, Portugal, Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Libya, Romania, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Ghana, Slovakia, Germany, Saudi Arabia, Afghanistan, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece, Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus, Finland, Gabon, Iran, Canada, Argentina, Lebanon.
