NM 450 Wear Resistant Steel Plate丨NM series steel
NM450 is a high-strength wear-resistant plate，and 450 represents the average Brinell hardness of this steel plate. Heat treatment: high temperature tempering, quenching + tempering (quenching and tempering) Application: NM450 Wear-resistant steel plate is widely used in mining machinery, coal mining machinery, environmental protection machinery, engineering machinery, etc. It is also commonly used as high-strength structural steel with a yield strength of ≥850MPa.
NM 450 Wear Resistant Steel Plate丨NM series steel Specification
Product name | Wear resistant steel plate |
Length | 4m-12m or customized |
Width | 0.6m-3m or customized |
Thickness | 3-300mm or customized |
Standard | API5L, ASTM A53-2007, ASTMA671-2006, ASTMA252-1998, ASTM A4501996, ASMEB36 ,10M-2004 , ASTMA523-1996, BS1387, BS EN10296,BS6323BS6363, BS EN10219, GB/T 3091-2001, GB/T13793-1992, GR/T9711 |
Material | NM360,NM400,NM450,NM500,NR360,NR400 |
Technology | Hot rolled cold rolled |
SurfaceTreatment | Bare,Black,Oiled,Shot Blasted,Spray Paint,Coated,Galvanized,or as Your Request |
MOQ | 1 ton, We can accept sample order. |
Export packing | Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required. |
Application | Widely used in construction machinery, mining machinery, coal mining machinery, environmentalprotection machinery, metallurgical |
Shipment time | Within 15-20 workdays after receiving deposit or L/C |
NM series steel Chemical composition
| Grade | Chemical Composition / % | ||||||||||
| C | Si | Mn | P | S | Cr | Ni | Mo | Ti | B | Als | |
| ≤ Not More Than | Range | ≥ | |||||||||
| NM300 | 0.23 | 0.7 | 1.6 | 0.025 | 0.015 | 0.7 | 0.5 | 0.4 | 0.05 | 0.0005~0.006 | 0.01 |
| NM360 | 0.25 | 0.7 | 1.6 | 0.025 | 0.015 | 0.8 | 0.5 | 0.5 | 0.05 | 0.0005~0.006 | 0.01 |
| NM400 | 0.3 | 0.7 | 1.6 | 0.025 | 0.01 | 1 | 0.7 | 0.5 | 0.05 | 0.0005~0.006 | 0.01 |
| NM450 | 0.35 | 0.7 | 1.7 | 0.025 | 0.01 | 1.1 | 0.8 | 0.55 | 0.05 | 0.0005~0.006 | 0.01 |
| NM500 | 0.38 | 0.7 | 1.7 | 0.02 | 0.01 | 1.2 | 1 | 0.65 | 0.05 | 0.0005~0.006 | 0.01 |
| NM550 | 0.38 | 0.7 | 1.7 | 0.02 | 0.01 | 1.2 | 1 | 0.7 | 0.05 | 0.0005~0.006 | 0.01 |
| NM600 | 0.45 | 0.7 | 1.9 | 0.02 | 0.01 | 1.2 | 1 | 0.8 | 0.05 | 0.0005~0.006 | 0.01 |
NM series steel Mechanical Properties
| Grade | Thickness | Tensile Strength | Elongation | Impact Energy | Brinell Hardness | ||||||
| mm | Rm / Mpa | A50mm / % | KV2 / J | HBW | |||||||
| NM300 | ≤80 | ≥1000 | ≥14 | ≥24 | 270-330 | ||||||
| NM360 | ≤80 | ≥1100 | ≥12 | ≥25 | 330-390 | ||||||
| NM400 | ≤80 | ≥1200 | ≥10 | ≥26 | 370-430 | ||||||
| NM450 | ≤80 | ≥1250 | ≥7 | ≥27 | 420-480 | ||||||
| NM500 | ≤70 | - | - | - | ≥470 | ||||||
| NM550 | ≤70 | - | - | - | ≥530 | ||||||
| NM600 | ≤60 | - | - | - | ≥570 |

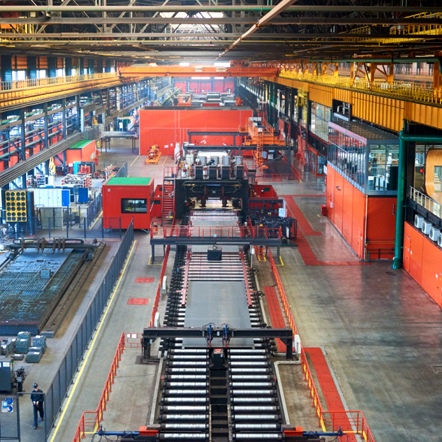

production workshop

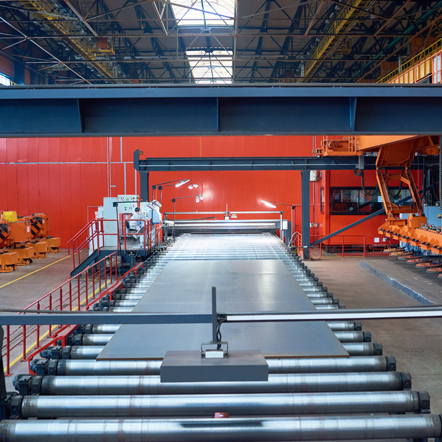

production workshop

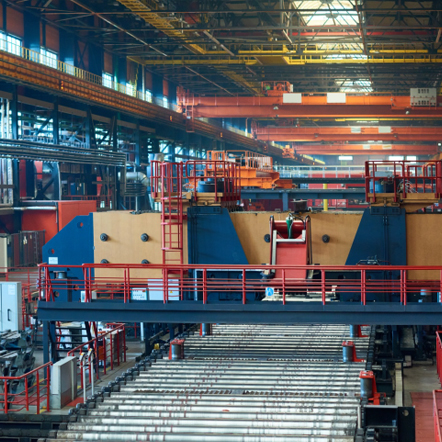

production workshop

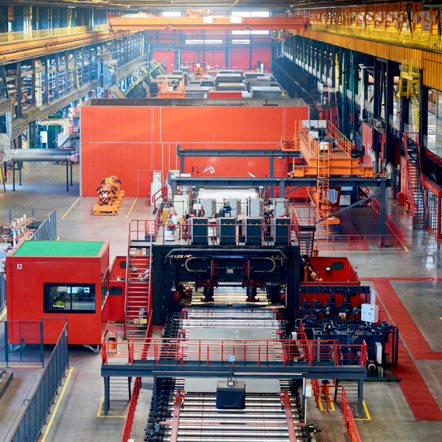

production workshop
