Oil and casing Pipe description
Oil and casing Pipe is the steel pipe used to support the wall of oil and gas Wells to ensure the normal operation of the entire well during the drilling process and after the completion of the well. Each well uses several layers of casing, depending on the drilling depth and geology. Cement should be used after casing running. It is different from tubing and drill pipe, and can not be reused. It belongs to disposable consumption material.
Oil and casing Pipe application
Oil casing is mainly used to support the well wall during drilling and after completion, so as to ensure the drilling process and the normal operation of the whole well after completion. The pumping pipe mainly transfers the oil and gas from the bottom of the well to the surface.Oil casing is a kind of large diameter pipe to hold oil and gas well walls or holes. Casing is inserted into the hole and secured with cement to help separate the rock formation and prevent the hole from collapsing, while keeping drilling mud circulating to facilitate drilling and production.
Oil and casing Pipe Chemical Composition
| Grade | Chemical Composition | |||||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | V | Nb | Ti | |
| API 5L X42 Pipe | 0.16 | 0.45 | 1.65 | 0.020 | 0.010 | 0.07 | 0.05 | 0.04 |
Oil and casing Pipe mechanical property
| API 5L Grade | Yield Strength min. (ksi) | Tensile Strength min. (ksi) | Yield to Tensile Ratio (max.) | Elongation min. %1 |
|---|---|---|---|---|
| API 5L X42 Pipe | 42 | 60 | 0.93 | 23 |
Oil and casing pipe specification
Product Name | API 5CT K55 Premium Connection Casing For Oil Pipe | |||
Material | api 5ct J55 K55 N80 L80 API 5L x42 x52 x60 x70 ; H40 C95 N80I N80 Q C-90 T-95 P110 Q-125 | |||
Size | Size 1.050" to 20" Outside Diameter 26.67 mm to 508 mm | |||
Standard | API5L , API 5CT API 5DP | |||
Certificates | API5L, API 5L ISO 9001:2008,SGS, BV,CCIC | |||
Wall thickness | 2.87~16.13 MM | |||
Surface Treatment | black paint, varnish, oil, galvanized, anti corrosion coatings | |||
End Type | LTC STC EUE NUE VAM XC NPT | |||
Pipe Ends | Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD) | |||
Pipe Length | 1. R1: 4.88~7.62M. 2. R2:7.62~10.36M 3.R3:10.36~14.63M | |||
Packaging | Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End | |||
Test | Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-rayTest. | |||
Application | oil pipe; gas pipe DRILL | |||
Advantages | 1.Reasonable price with excellent quality2.Abundant stock and prompt delivery | |||

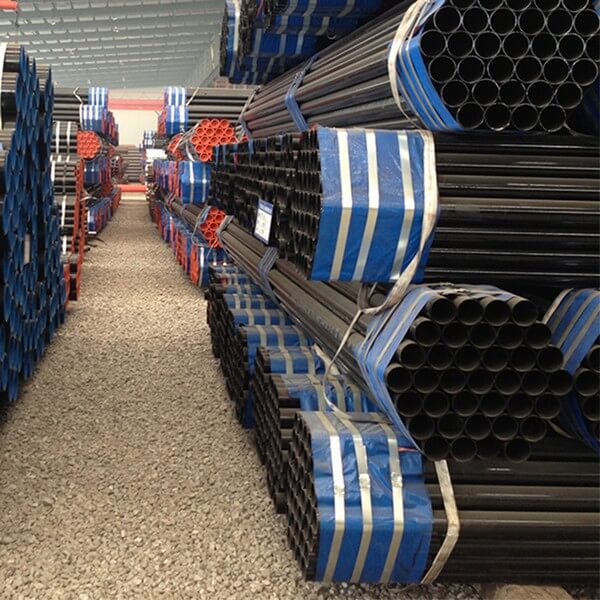

production workshop

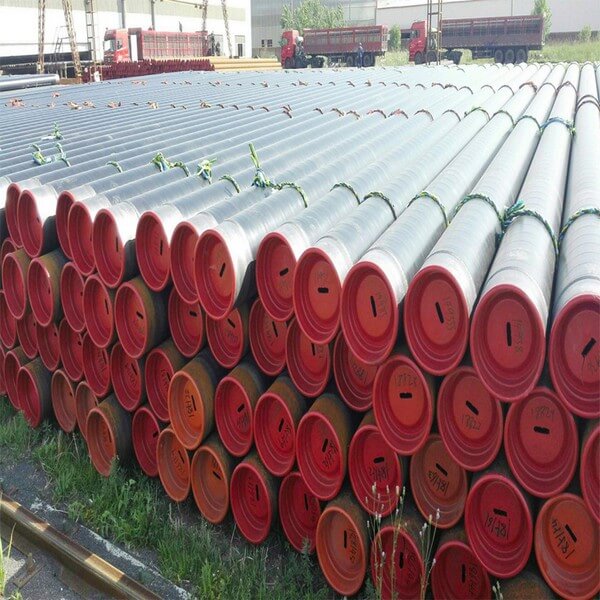

production workshop

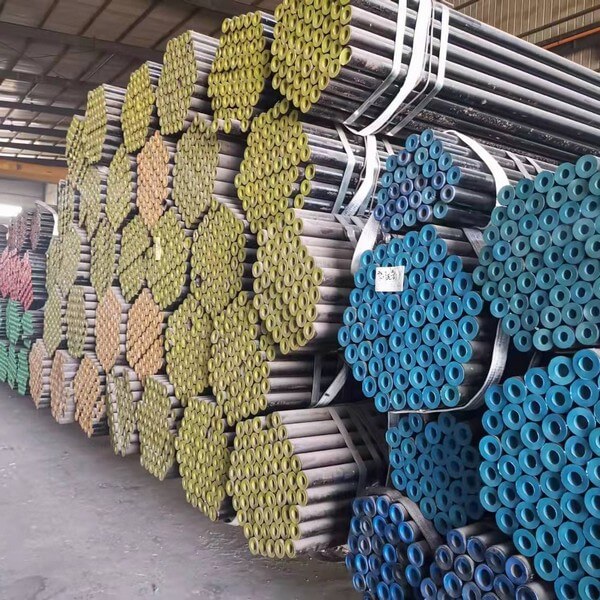

production workshop
production workshop
