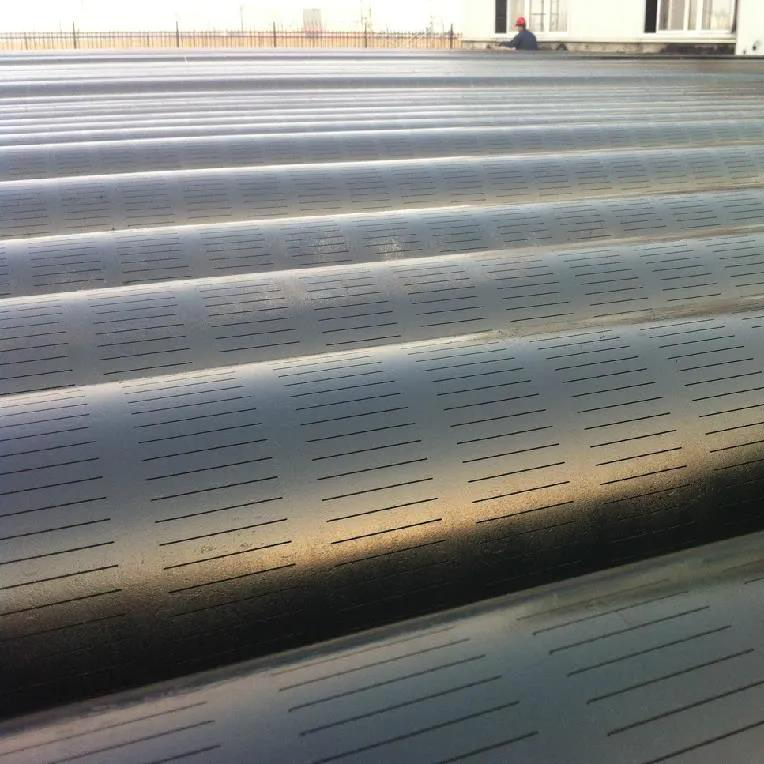

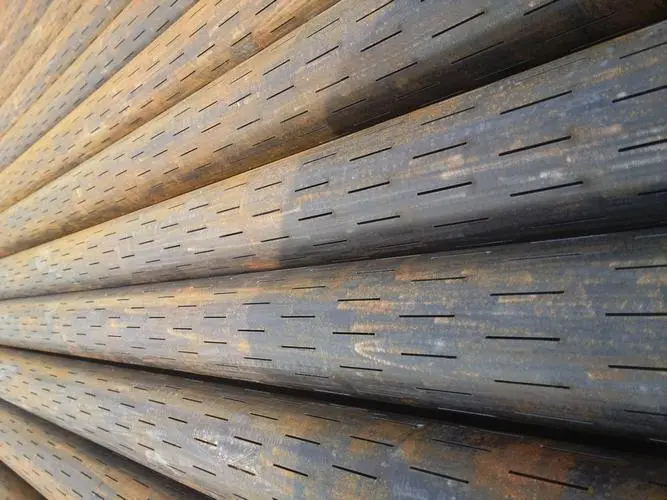

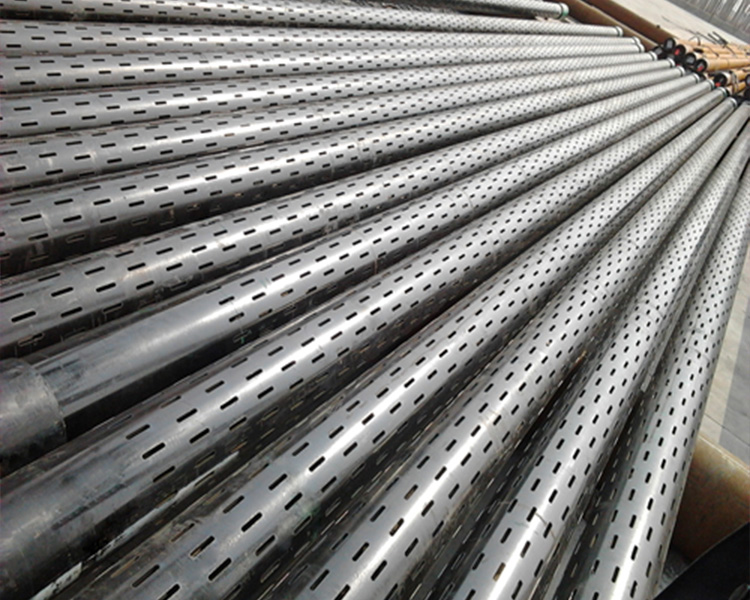

Slotted tube
Slotted pipe processing is to cut hundreds of thousands of longitudinal cracks on the high-strength steel body by cold working or hot working. The common specifications of the cracks are: the width of the crack is 0.15-3mm, wider, and the length of the gap is 50-200mm. The cross-section types include: rectangular, stepped, and various types, and there are also circular slotted screens, with an aperture specification range of 5-20 mm (m). The cutting quality of the slotted screen mainly depends on the precision of the slot width, the uniformity of the cross-sectional shape of the slot, the smoothness of the edge of the slot and the corrosion resistance of the slot.
Slotted tube chemical composition
| GRADE | Chemical Composition | Mechanical Property | ||||||||||
| C (Max) | Mn (Max) | P (Max) | S (Max) | Tensile | Yield | C. E. IMPACT ENERGY | ||||||
| Psi x 1000 | Mpa | Psi x 1000 | Mpa | PCM | IIW | J | FT/LB | |||||
| B | 0.22 | 1.20 | 0.025 | 0.015 | 60 - 110 | 414 - 758 | 35 - 65 | 241 - 448 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X42 | 0.22 | 1.30 | 0.025 | 0.015 | 60 - 110 | 414 - 758 | 42 - 72 | 290 - 496 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X46 | 0.22 | 1.40 | 0.025 | 0.015 | 63 - 110 | 434 - 758 | 46 - 76 | 317 - 524 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X52 | 0.22 | 1.40 | 0.025 | 0.015 | 66 - 110 | 455 - 758 | 52 - 77 | 359 - 531 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X56 | 0.22 | 1.40 | 0.025 | 0.015 | 71 - 110 | 490 - 758 | 56 - 79 | 386 - 544 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X60 | 0.22 | 1.40 | 0.025 | 0.015 | 75 - 110 | 517 - 758 | 60 - 82 | 414 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X65 | 0.22 | 1.45 | 0.025 | 0.015 | 77 - 110 | 531 - 758 | 65 - 82 | 448 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X70 | 0.22 | 1.65 | 0.025 | 0.015 | 82 - 110 | 565 - 758 | 70 - 82 | 483 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X80 | 0.22 | 1.90 | 0.025 | 0.015 | 90 - 120 | 621 - 827 | 80 - 102 | 552 - 705 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
Slotted tube mechanical property
| API 5L Grade | Yield Strength min. (ksi) | Tensile Strength min. (ksi) | Yield to Tensile Ratio (max.) | Elongation min. %1 |
| A | 30 | 48 | 0.93 | 28 |
| B | 35 | 60 | 0.93 | 23 |
| X42 | 42 | 60 | 0.93 | 23 |
| X46 | 46 | 63 | 0.93 | 22 |
| X52 | 52 | 66 | 0.93 | 21 |
| X56 | 56 | 71 | 0.93 | 19 |
| X60 | 60 | 75 | 0.93 | 19 |
| X65 | 65 | 77 | 0.93 | 18 |
| X70 | 70 | 82 | 0.93 | 17 |
| X80 | 80 | 90 | 0.93 | 16 |
Slotted tube Specification
Steel grade | 200/300/400 series | |
| ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605, | |
Material | 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201, | |
Surface | Polishing,annealing,pickling,bright | |
Type | hot rolled and cold rolled Seamless or Welded | |
Delivery time | Prompt delivery or as the order quantity. | |
Package | Standard export seaworthy package,or as required. | |
| Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper | |
Contact | If you have any questions,please feel free to contact me. | |
| 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM | |
production workshop
production workshop
production workshop
production workshop
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
