What is Non-magnetic stainless steel plate
Non-magnetic stainless steel material is stainless steel, with special properties that the magnetic field lines can pass through, so it has important applications in some microwave devices, the eddy current loss generated in the pulsed magnetic field relative to copper or other metals is smaller, this is because the conductivity of non-magnetic stainless steel is less than copper.
Non-magnetic stainless steel plate classification
1、Austenitic stainless steel
Austenitic stainless steel due to the addition of higher chromium and nickel in the steel (chromium in about 18%, Ni in more than 4%), the internal organization of the steel shows a called austenite organizational state, this organization is not magnetically conductive, can not be attracted by magnets
2、Markov stainless steel
Commonly used as decorative materials, such as stainless steel pipes, towel racks, tableware, stoves, etc. The stainless steel of knife and scissors should be made of Martensier stainless steel.This kind of stainless steel must be heat treated to make the internal structure change. Increase the hardness before cutting. But the internal structure of this kind of stainless steel is tempered martensite, which has magnetic conductivity and can be attracted by magnets.
Non-magnetic stainless steel plate chemical composition
| Chemical Composition (%) of 310 Stainless Steel Plate | ||||||||
| Cr | Ni | C | Si | Mn | P | S | Mo | Cu |
| 24.0 -26.0 | 19.0-22.0 | 0.25 | 0.75 | 2 | 0.045 | 0.03 | 0.75 | 0.5 |
Non-magnetic stainless steel plate mechanical property
| Mechanical Properties of 310 Stainless Steel Plate | ||||
| Tensile Strengtd ksi (min.) | Yield Strength 0.2% Offset ksi (min.) | Elongation - % in 50 mm (min.) | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 75 | 30 | 40 | 217 | 95 |
Non-magnetic stainless steel plate specification
Size | Thickness 0.01-3.0mm or customized; Width:10-1500mm Customized |
Brand | RONSCO,BAOSTEEL, JISCO, TISCO, etc. |
Material | 201.202.301.302.304.304L.310S.316.316L.321.347,329,A.309S.2205.2507.2520. 430.410.440.904Lect. Or Customized |
Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
Surface | 2B.NO.1.,NO.3,NO.4,HL,BA,8K,Matte, Satin,Gold Titanium Or customized; |
Application | Foodstuff, Gas, metallurgy, biology, electron, chemical, petroleum, |
Package | Standard export sea-worthy packing or customized |
Lead Time | 3-15 days after deposit |
Payment | TT/LC |
Sample | we could offer the sample for free charge but do not pay the cost of freight. |

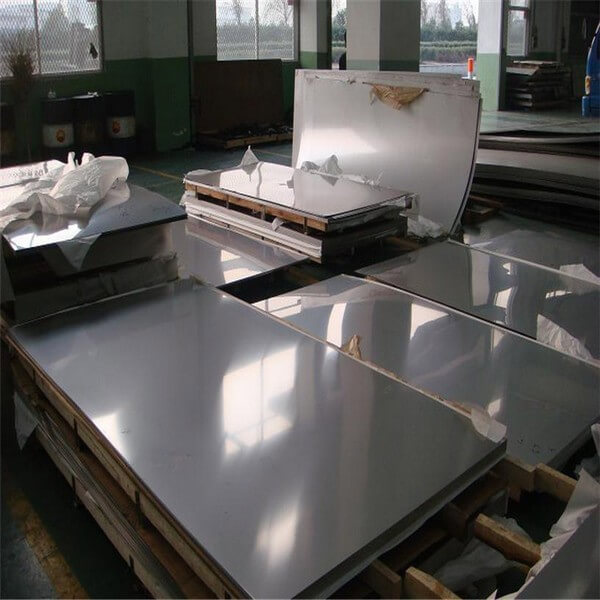

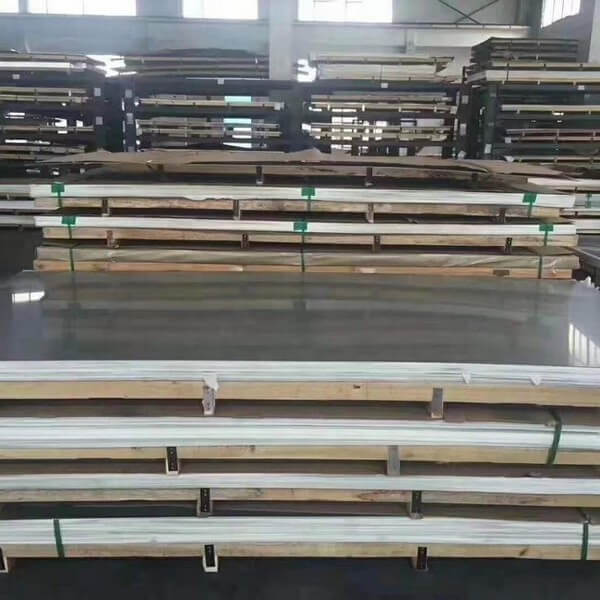

production workshop
production workshop
production workshop
production workshop
Hot Products
| stainless steel plate 304 vs 316 | stainless steel plate for gas |
| stainless steel plate dealers | stainless steel plate for potable water |
| stainless steel plate dealers near me | stainless steel plate for drinking water |
| stainless steel plate distributors near me | stainless steel plate for compressed air |
| stainless steel plate factory | stainless steel plate for sale near me |
| stainless steel plate fittings online | stainless steel plate for steam |
| stainless steel plate for railing | stainless steel plate for water supply |
| stainless steel plate for natural gas | stainless steel plate images |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
stainless steel plate outlet
We are a well known worldwide supply and export stainless steel plate in following countries：,Italy, Philippines, France，Ireland, Portugal, Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Libya, Romania, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Ghana, Slovakia, Germany, Saudi Arabia, Afghanistan, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece, Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus, Finland, Gabon, Iran, Canada, Argentina, Lebanon.
