Product Description
316 stainless steel angle application
Mainly used in a variety of building and engineering structures, such as beam, bridge, power transmission tower, lifting machinery, ships, industrial furnace, reaction tower, container rack and warehouse shelves.Due to the addition of Mo, so its corrosion resistance, atmospheric corrosion resistance and high temperature strength is particularly good, can be used under harsh conditions; Excellent work hardening (non-magnetic). Seawater equipment, chemical, dye, paper, oxalic acid, fertilizer and other production equipment; Photography, food industry, coastal facilities, ropes, CD rods, bolts, nuts.
316 stainless steel angle Chemical composition
C≤0.08, Si≤1.00, Mn≤2.00, P≤0.035, S≤0.03, Ni:10.0-14.0, Cr:16.0-18.5, Mo:2.0-3.0.
316 stainless steel angle advantage
1. Corrosion resistance
Corrosion resistance is better than 304 stainless steel, in the pulp and paper production process has good corrosion resistance. And 316 stainless steel is also resistant to the erosion of the ocean and erosive industrial atmosphere.
2. Heat resistance
In the intermittent use below 1600 degrees and in the continuous use below 1700 degrees, 316 stainless steel has good oxidation resistance. In the range of 800-1575 degrees, it is best not to continuously use 316 stainless steel, but in the temperature range outside the continuous use of 316 stainless steel, the stainless steel has good heat resistance. The resistance of 316L stainless steel to carbide precipitation is better than 316 stainless steel, available in the above temperature range.
Product Specification
316 Stainless Steel Angles | ||||
Thickness | 0.3mm-6.0mm | |||
Standard Width | 1000mm/1219mm/1500mm | |||
Standard Length | 2000mm/2439mm/3000mm | |||
Surface Finish | 2B,BA,No.1,No.4,No.8,8K,mirror, | |||
Grade | 304,304L,304J1,321,316L,316Ti, | |||
Standard | ASTM,JIS,SUS,GB,DIN | |||
Chemical composition of 316 stainless steel angle
| Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
| 316 | min. | 10 | – | – | – | – | – | 16 | 2 | – |
| max. | 14 | 2 | 0.045 | 0.08 | 0.03 | 0.75 | 18 | 3 | 0.1 | |
Mechanical property of 316 stainless steel angle
| Grade | Proof Stress (MPa) | Tensile Strength (MPa) | Hardness Brinell |
| Stainless Steel 316 | 200 | 500 - 700 | 215 Max HB |

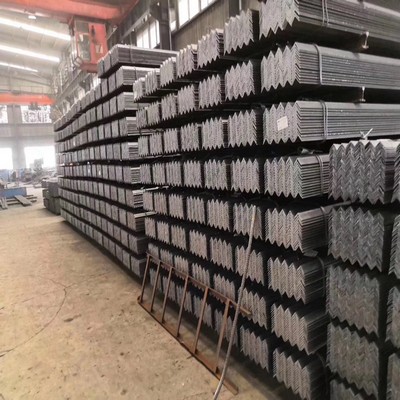

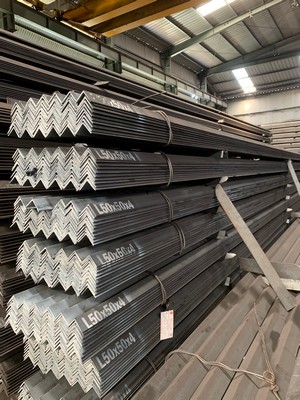

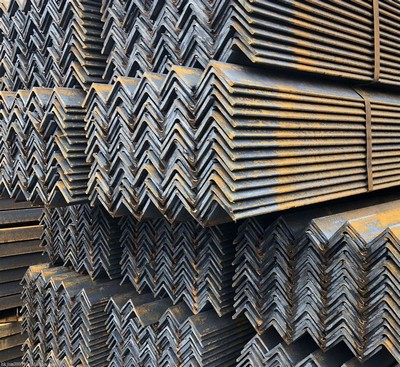

production workshop
production workshop
production workshop
production workshop
Hot sale product
| 1x1 Galvanized steel angle | 316 Galvanized steel angle sizes |
| 2 inch Galvanized steel angle iron | 90 degree angle Galvanized steel |
| 2x2 Galvanized steel angle | Galvanized steel 304 angle bar |
| 3 4 x 3 4 Galvanized steel angle | Galvanized steel angle 1/16 |
| 3 x 3 Galvanized steel angle | Galvanized steel angle 2mm |
| 304 Galvanized steel angle | Galvanized steel angle 304 |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
Our export country
We are a well known worldwide supply and export stainless steel angle in following countries：,Italy, Philippines, France，Ireland, Portugal, Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Libya, Romania, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Ghana, Slovakia, Germany, Saudi Arabia, Afghanistan, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece, Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus, Finland, Gabon, Iran, Canada, Argentina, Lebanon.
