317stainless steel pipe Description
317L stainless steel pipe, also known as UNS S31703 and Grade 317L SS pipe, it is a low carbon high grade stainless steel pipe, with a good corrosion resistance and machine work performance. Compare to 317L, 317 stainless steel has a higher carbon content, it means that 317 stainless steel has a better heat resistance. 317 Stainless Steel is an austenitic stainless steel which contains molybdenum. This grade has improved corrosion resistance over 304/304L and 316/316L.317 stainless steel is the most widely used chrome-nickel stainless steel, has good corrosion resistance, heat resistance, low temperature strength and mechanical properties.
317stainless steel pipe chemical composition
Chemical Composition (%) of 317/317L Stainless Steel Pipe
| Carbon | Silicon | Sulfur | Phosphorus | Chromium | Molybdenum | Manganese | Nickel | Nitrogen |
| 0.030 | 0.75 | 0.030 | 0.045 | 18.0-20.0 | 3.0-4.0 | 2.00 | 11.0-15.0 | 0.10 |
317stainless steel pipe mechanical property
Mechanical Properties of 317/317L Stainless Steel Plate
| Yield Strengtd 0.2% Offset | Ultimate Tensile Strength | Elongation in 2 in. | Hardness | ||
| psi (min.) | (MPa) | psi (min.) | (MPa) | % (min.) | (max.) |
| 30,000 | 205 | 75,000 | 515 | 40 | 95 Rockwell B |
317stainless steel pipe Specification
Material | RONSCO,BAOSTEEL, JISCO, TISCO, Etc. |
Outer Diameter | OD 6mm-630mm or customized |
Thickness | 0.4-30mm or customized |
Model Number | 201.202.301.302.304.304L.309S.310S.316.316L.316Ti.321.317.410.430.630. |
Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
Surface | Black,Bright,2B,BA,NO.1,Hairline,Mirror |
Application | Decoration, construction and upholstery, etc |
Package | Each tube in a plastic bag with size label outside and pack in small bundles |
Delivery Time | 5-7workdays for one FCL Or according to order list detail |
Payment | T/T,L/C, |
Sample | we could offer the sample for free charge but do not pay the cost of freight. |

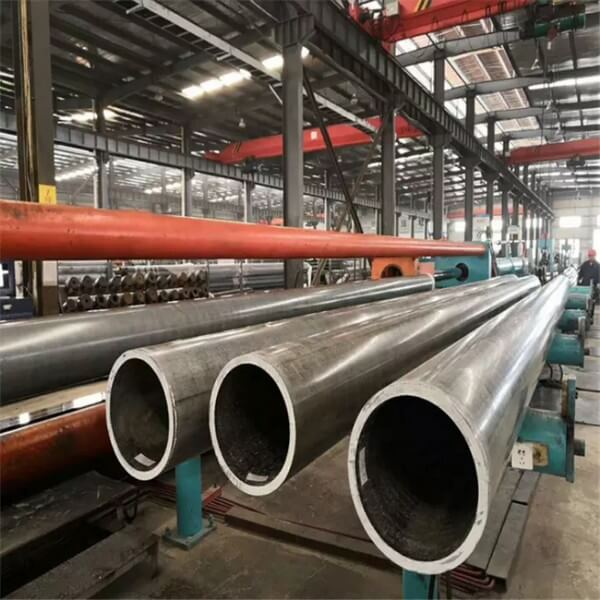

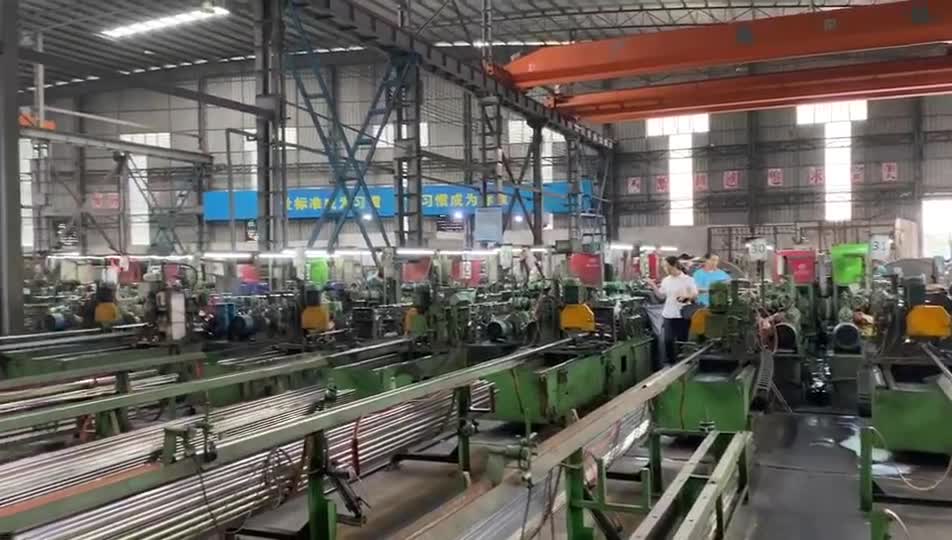

production workshop
production workshop
production workshop
production workshop
hot sale product
| 301 cold rolled stainless steel pipe suppliers | 304 304l 316 316ti 316l stainless steel pipe |
| 301 stainless steel pipe factory | 304 stainless steel pipe supplier |
| 304 2b stainless steel pipe | 201 stainless steel nksstainless steel pipe |
| 301 stainless steel pipe manufacturers | 310s stainless steel pipe |
| 301 stainless steel pipe price | 202 ba stainless steel pipe |
| 316 stainless steel pipe for sale | 202 stainless steel pipe |
| 304 stainless steel pipe factories | 316l cold rolled stainless steel pipes |
| 409l stainless steel pipe manufacturers | 316l hot rolled stainless steel pipes |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
stainless steel pipe outlet
We are a well known worldwide supply and export stainless steel pipe in following countries：,Italy, Philippines, France，Ireland, Portugal, Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Libya, Romania, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Ghana, Slovakia, Germany, Saudi Arabia, Afghanistan, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece, Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus, Finland, Gabon, Iran, Canada, Argentina, Lebanon.
