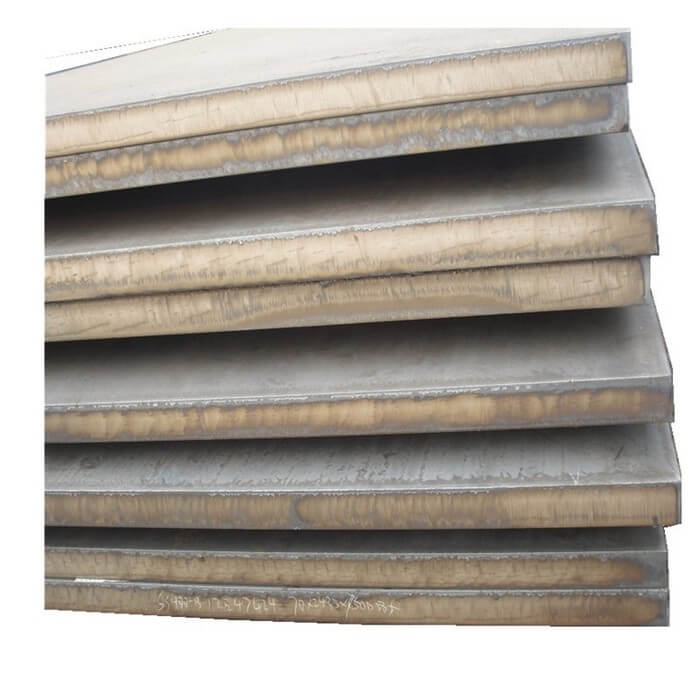

1Cr5Mo Alloy Steel Plate
1Cr5Mo heat-resistant steel can resist corrosion generated during petroleum cracking. 1Cr5Mo heat-resistant steel is used for reheat steam pipes, petroleum cracking pipes, boiler hangers, steam turbine cylinder liners, pump parts, valves, piston rods, high-pressure hydrogenation equipment components, fasteners, etc.
Characteristics: It has good oxidation resistance, corrosion resistance, and tissue stability. High thermal strength performance and good process performance.
1Cr5Mo is equivalent to ASTM or ASMESA387 Gr5 in the United States (5Cr-0.5Mo)
Executive standard for 1Cr5Mo steel plate: GB/T 1221-1992
1Cr5Mo steel plate delivery status: Normalized, tempered, normalized and tempered, quenched and tempered. Delivery status can also be specified according to technical requirements.
Chemical composition of 1Cr5Mo Alloy Steel Plate
| Grade | C | Si | Mn | Cr | P | S | Mo | Ni |
| 1Cr5Mo | ≤0.15 | ≤0.50 | ≤0.60 | 4.00-6.00 | ≤0.03 | ≤0.02 | ≤0.45-0.60 | ≤0.6 |
Mechanical property of 1Cr5Mo Alloy Steel Plate
| Grade | Yield Strength (MPa) | Ultimate Tensile Strength (MPa) | Elongation at Break (%) |
| 1Cr5Mo | ≥390 | ≥590 | ≥18 |
Product Introduction of 1Cr5Mo Alloy Steel Plate
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy |
| Shape | Bar,Pipe/tube,sheet/plate,Forging,Ring,Coil,Flange,Ribbon,Square pipe/bar, |
| Grade | Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;etc | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750;ETC | |
| Incoloy: Incoloy 800/800H/800HT/825/925/926;etc | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044,etc | |
| Monel: Monel 400/K500/R405,etc | |
| Nitronic: Nitronic 40/50/60;etc | |
| Nimonic: Nimonic 75/80A/90/A263 ;etc | |
| Specification | Wire: 0.01-10mm |
| Strip: 0.05*5.0-5.0*250mm | |
| Bar: φ4-50mm;Length 2000-5000mm | |
| Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm | |
| Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm | |
| Product | 1.According to the preparation process can be divided into deformation superalloys, |
| Characteristics | casting superalloys and powder metallurgy superalloys. |
| 2.According to the strengthening mode, there are solid solution strengthening type, precipitation | |
| strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. | |
| Inspection | ISO,SGS,BV and so on. |
| Packaging | All our products are packed, stored, transported according to the international regulation.Or as customer's requirement provide special packing. |
production workshop
production workshop
production workshop
production workshop
Hot sale product
| q345nqr2 weathering and corrosion resistant steel plate | q460nh weathering and corrosion resistant steel plate |
| q355gnhb weathering and corrosion resistant steel plate | q550nh weathering and corrosion resistant steel plate |
| q355nh weathering and corrosion resistant steel plate | s355j0w weathering and corrosion resistant steel plate |
| q355nhd weathering and corrosion resistant steel plate | s355j0wp weathering and corrosion resistant steel plate |
| q355nhe weathering and corrosion resistant steel plate | s355j2w weathering steel plate |
| q450nqr1 weathering and corrosion resistant steel plate | s355j2wp weathering and corrosion resistant steel plate |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
Alloy steel plate Outlet
We are a well known worldwide supply and export Alloy Steel Plate in following countries：,Italy, Philippines, France，Ireland, Portugal, Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Libya, Romania, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Ghana, Slovakia, Germany, Saudi Arabia, Afghanistan, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece, Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus, Finland, Gabon, Iran, Canada, Argentina, Lebanon.
