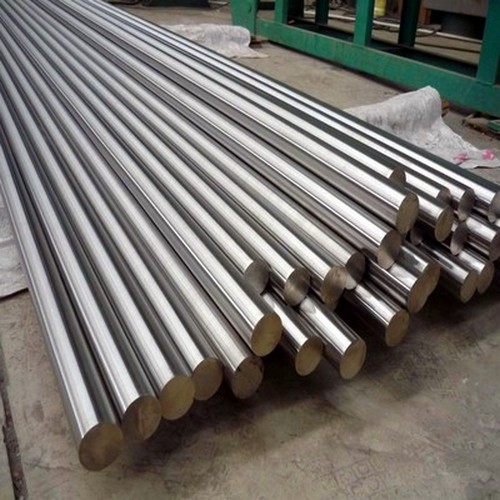

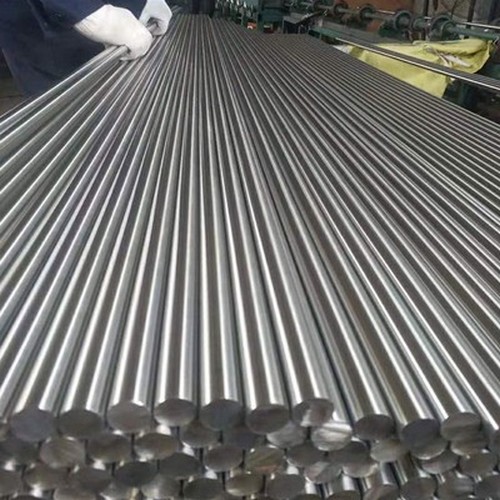

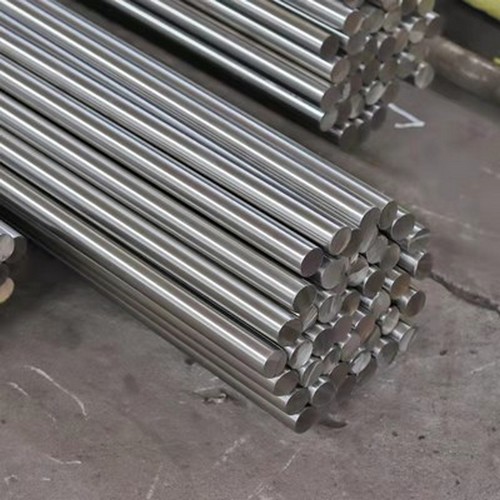

Hastelloy round bar features
1、In oxidation and reduction two atmosphere state, has excellent corrosion resistance to most corrosive media.
2、It has excellent pitting corrosion resistance, crevice corrosion and stress cracking corrosion resistance.
Hastelloy round bar description
Hastelloy is a kind of nickel - based corrosion - resistant alloy, mainly divided into nickel - chromium alloy and nickel - chromium molybdenum alloy two categories. Hastelloy alloy has good corrosion resistance and thermal stability, and is widely used in aviation and chemical fields.
Hastelloy C-276 advantage
Hastelloy C-276, also known as Hastelloy C-276, is a nickel-based high temperature alloy consisting of nickel, molybdenum, cobalt and tungsten, with a nickel content of approximately 55%. It is an all-purpose nickel-chromium-molybdenum-tungsten alloy with better overall corrosion resistance than other available nickel-chromium-molybdenum alloys. The alloy has excellent resistance to pitting, crevice corrosion and stress corrosion cracking, and it has excellent resistance to aqueous media, including wet chloride, nitric acid or a mixture of oxidizing acids containing chloride ions.
Hastelloy C-276's higher nickel content of 55% and molybdenum content of 15% determine its excellent corrosion resistance, which cannot be replaced by other materials, but also increases the difficulty of processing the material. If the environmental pressure of your trial is not large, we suggest you try to use welded pipe. Seamless tube steel pipe perforated with molybdenum top is a molybdenum alloy, C-276 higher molybdenum content determines that it can not be directly perforated (perforation is easy to crack), foreign usually C-276 steel pipe is also used instead of welded pipe.
Hastelloy round bar chemical composition
UNS N10276 Chemical Composition Alloy C276 rod
| Hastelloy C276 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
| Balance | 0.010 max | 15.00 – 17.00 | 1.00 max | 0.08 max | 4.00 – 7.00 | 0.04 max | 0.03 max | 2.5 max | 14.50 – 16.50 |
Hastelloy round bar mechanical property
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.89 g/cm3 | 1370 °C (2550 °F) | Psi – 1,15,000 , MPa –790 | Psi – 52,000 , MPa – 355 | 40 % |
Hastelloy round bar specification
Product name | Hastelloy round bar |
Diameter | 3-480mm or customized |
Length | 3000mm, 4000mm,5800mm,6000mm,12000mm,or as required |
Application | Widely used in petroleum,foodstuff,chemical industry, construction, electric power,nuclear,energy,machinery, biotechnology,paper |
Length | Customized |
Quality & Test | Hardness Test, Spectrometer Detection |
Surface | Bright, Polished, Pickling, Acid Cleaning |
Grade | Hastelloy C276 bar |
Hastelloy C, Hastelloy C4, Hastelloy C22, Hastelloy C59Hastelloy C276, , Hastelloy C2000 | |
Hastelloy B, Hastelloy B2, Hastelloy B3, Hastelloy B4 | |
Hastelloy G, Hastelloy G3, Hastelloy G30, Hastelloy G50 | |
Hastelloy X | |
Container Size | 20 GP |
Technique | Cold Drawing |
production workshop
production workshop
production workshop
production workshop
hot sale product
| hastelloy c276 | hastelloy d205 |
| c276 hastelloy | wholesale hastelloy x wire |
| wholesale hastelloy x strip factory | wholesale hastelloy x tube |
| hastelloy x | wholesale hastelloy x strip factory |
| hastelloy metal | wholesale hastelloy x strip |
| hastelloy c | wholesale hastelloy x sheet |
| hastelloy c-276 | wholesale hastelloy x plate |
| wholesale hastelloy c22 | hastelloy c22 |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
Hastelloy outlet
We are a well known worldwide supply and export Hastelloy in following countries：,Italy, Philippines, France，Ireland, Portugal, Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Libya, Romania, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Ghana, Slovakia, Germany, Saudi Arabia, Afghanistan, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece, Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus, Finland, Gabon, Iran, Canada, Argentina, Lebanon.
