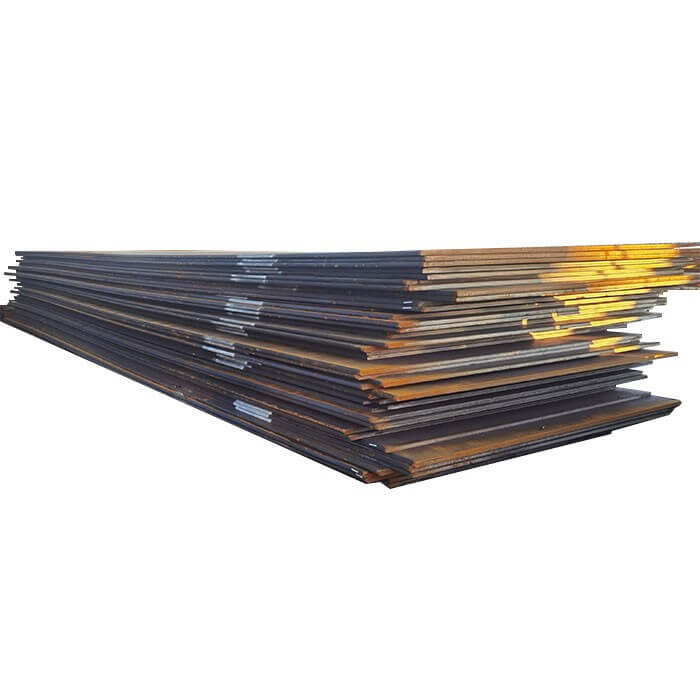

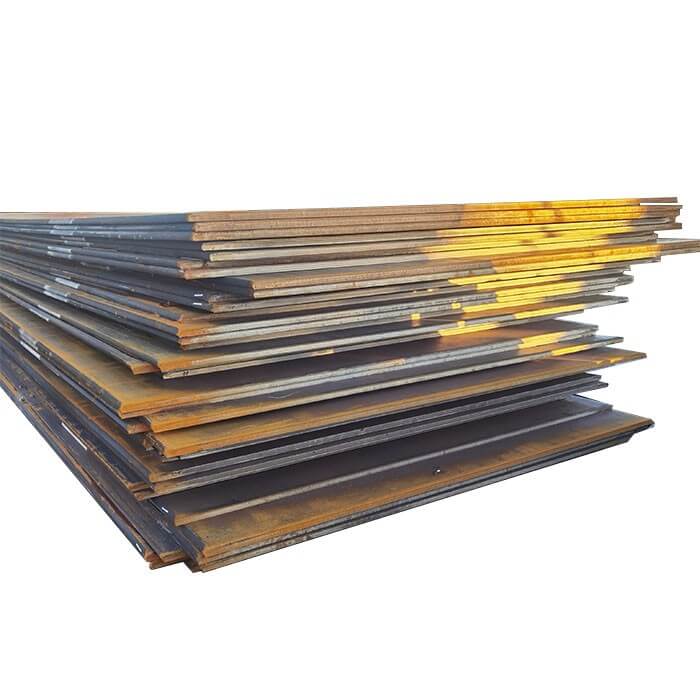

40Mn High Mechanical Performance Structural Steel Plate
The three materials of 35Mn, 40Mn, and 45Mn all belong to high-quality carbon structural steel, with the main difference being that the carbon content is different and the other components are the same. The difference in carbon content is directly related to the material properties.
40Mn characteristic usage
40Mn carbon structural steel can be used in the normalized state, as well as in the quenched and tempered state. Good cutting performance, moderate plasticity during cold deformation, and poor welding performance. Used for manufacturing parts that withstand fatigue loads, such as shaft rollers and screws, nuts, etc. that work under high stress.
The hardenability is slightly higher than that of 40 steel. After heat treatment, the strength, hardness, and toughness are slightly higher than those of 40 steel, with moderate cold deformation plasticity, good machinability, low weldability, sensitivity to overheating and temper brittleness, and easy cracking after water quenching. Suitable for fatigue resistant parts, crankshafts, rollers, shafts, and connecting rods.
Chemical composition of 40Mn High Mechanical Performance Structural Steel Plate
Grade |
C |
Si |
Mn |
Cr |
P |
S |
Cu |
Ni |
40Mn |
0.37~0.44 |
0.17~0.37 |
0.70~1.00 |
≤0.25 |
≤0.035 |
≤0.035 |
≤0.25 |
≤0.30 |
Mechanical property of Chemical composition of 40Mn High Mechanical Performance Structural Steel Plate
Grade |
Yield Strength (MPa) |
Ultimate Tensile Strength (MPa) |
Elongation at Break (%) |
40Mn |
≥355 |
≥590 |
≥17 |
Product Introduction of Mechanical property of Chemical composition of 40Mn High Mechanical Performance Structural Steel Plate
Product name | Alloy high strength steel 40Mn DIN 60Si2Mn 55Si2Mn spring steel plate |
Standrad | GB JIS ASTM DIN |
Thickness | 1.5-20mm |
Width | 1250-2000mm |
Technique | Hot rolled,cold rolled |
Surface Treatment | Clean, blasting and painting according to customer requirement |
Thickness tolerance | ±0.1mm |
Application | 65Mn steel can make a general section size of 8~15mm or so small spring such as a variety of small size flat round spring, bottom spring spring spring, also suitable for the production of spring ring valve spring clutch reed brake spring, etc 65Mnj is one of the materials for making all kinds of board springs and silk springs. |
