Monel alloy 400 advantage
Monel 400 alloy has excellent mechanical properties, a wide range of temperatures from low to high temperatures, good weldability and medium to high strength.It is a nickel-based alloy material with good corrosion resistance in seawater, chemical solvents, ammonia sulfur chlorine, hydrogen chloride, various acidic media such as sulfuric acid, hydrofluoric acid, hydrochloric acid, phosphoric acid, organic acid, alkaline medium, salt and molten salt.
Monel alloy 400 application
The Monel 400 is mainly used in chemical and petrochemical industries and Marine development. Can be used to manufacture all kinds of heat exchange equipment, boiler feed water heaters, petroleum and chemical pipelines, containers, towers, tanks, valves, pumps, reaction kettle, shaft, etc.
alkaline medium, salt and molten salt.
Monel alloy 400 chemical composition
| Monel 400 | Ni | Fe | C | Mn | Si | Cu | Al | S |
| 63.0 min | 1.0 - 2.5 | 0.3 max | 2.0 max | 0.5 max | 28.0 - 34.0 | 0.50 max | 0.02 max |
Monel alloy 400 mechanical property
| shape | strength of extension | yield strength (0.2% Offset) | tensile elongation % | hardness | |||
ksi | MPa | Brinell (3000-kg) | Rockwell B | ||||
bar | 70-110 | 480-760 | 25-85 | 170-585 | 50-5 | 110min | 60min |
sheet | 70-95 | 482-655 | 28-75 | 193-517 | 50-30 | 110-215 | 60-96 |
thin plate | 70-120 | 482-827 | 30-110 | 207-758 | 45-2 | 65min | |
belt | 70-140 | 482-965 | 25-130 | 172-896 | 50-2 | 68min | |
seamless tube | 70-130 | 482-896 | 25-110 | 172-758 | 50-3 | 100max | |
cold-drawn wire | 70-180 | 482-1241 | 30-170 | 207-1172 | 45-2 |
Monel alloy 400 specification
ASTM B 165 ASTM B 829 Nickle Alloy Monel 400 UNS N06600 N06601 N06690 seamless pipe Manufacturer
name | bright annealed solution Nickel Alloy Seamless Pipe | ||
type | round | ||
technique | cold drawn/hot rolled/forged | ||
other material | 200/300/400 series stainless steel, hastelloy/inconel/incoloy etc nickle alloy steel | ||
diameter | 1-1000mm | ||
length | as your request | ||
price term | EXW/FOB/CIF/CFR/FCA | ||
delivery term | TT/Western Union/LC | ||
packing | woven bag, or wooden case | ||
delivery time | 15-20 days | ||

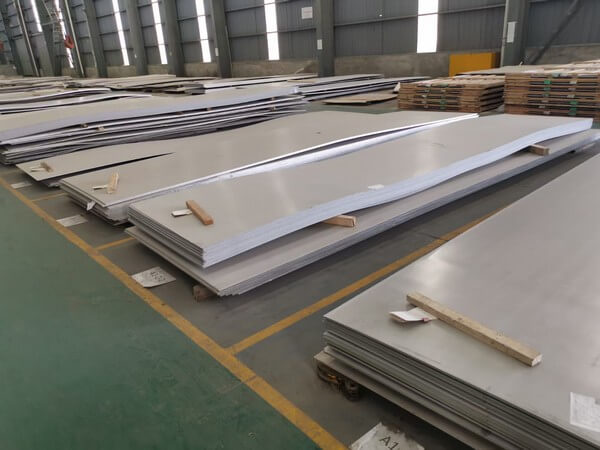

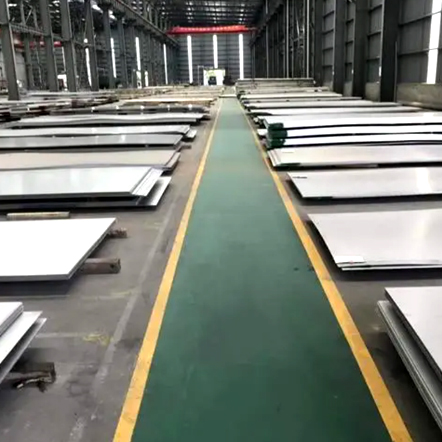

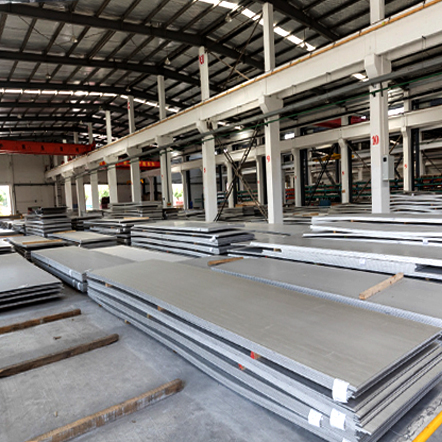

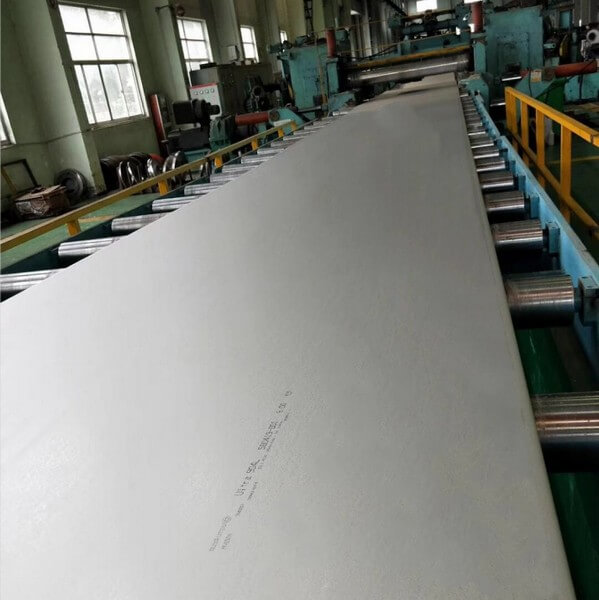

production workshop
production workshop
production workshop
production workshop
hot sale product
| alloy steel plate and sheet | alloy plate steel |
| alloy steel plate astm a570 | alloy steel plate hs code |
| alloy steel plate dx54d steel structure | alloy steel plate suppliers |
| alloy steel plate exporter | alloy steel plates |
| alloy steel plate factories | alloy steel plates manufacturer |
| alloy steel plate factory | china alloy steel plate |
| alloy steel plate in stock | wholesale alloy steel plate |
| alloy steel plate manufacturer | alloy steel plate manufacturers |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
Monel Outlet
We are a well known worldwide supply and export Monel in following countries：,Italy, Philippines, France，Ireland, Portugal, Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Libya, Romania, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Ghana, Slovakia, Germany, Saudi Arabia, Afghanistan, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece, Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus, Finland, Gabon, Iran, Canada, Argentina, Lebanon.
