Nickel Copper Zinc Alloy Description
What is Nickel Copper Zinc Alloy?
It has beautiful color, ductility, fatigue resistance, corrosion resistance are good, rich deep drawing performance.It contains 50%~70% copper, 5%~30% nickel and 5%~40% zinc. When the copper content is more than 60%, it is a single-phase solid solution alloy with good workability. After adding nickel, it has beautiful silver gray luster and good corrosion resistance. It is an excellent base metal for chrome plating, nickel plating and silver plating
Nickel Copper Zinc Alloy application
Commonly used as rivets, screws, edible utensils, zippers, clothing accessories, radio dial, etc. The alloy containing 50% ~ 60% copper is a biphase alloy, with good thermal working performance and high elastic modulus, commonly used as a variety of springs, telephone equipment joints, resistance wire, hardware and medical instruments.
Nickel Copper Zinc Alloy chemical composition
Cu+Ag：59.0~66.5， Pb：0.8~1.4， Fe：≤0.25， Zn：margin， Ni+Co：11.0~13.0，Mn：≤0.50
Nickel Copper Zinc Alloy Specification
Name | ASTM/CDA | EN | JIS | GB/QB | Characteristics | Application |
High precision zinc copper nickel alloy strip & plate | C75200 | CuNi18Zn20 | C7521 | BZn18-18 | Have beautiful sheen, good cold working, malleability, corrosion resistance, fatigue resistance, high elasticity, electronic and mechanical performance, and shield performance | Widely used to make structure which works in damp and corrosion medium, elastic element, precision instrument, communication industry, LCD oscillator shell, potentiometer reed and other electrical material. |
C77000 | CuNi18Zn27 | C7701 | BZn18-26 | |||
C75400 | CuNi15Zn20 | C7541 | BZn15-20 |
Nickel Copper Zinc Alloy chemical composition
| Chemical composition in % | CuNi12Zn24 CW403J | CuNi18Zn20 CW409J | CuNi18Zn27 CW410J |
| Zn | Remains | Remains | Remains |
| Cu | 63.0 - 66.0 | 60.0 - 63.0 | 53.0 - 56.0 |
| Pb | 0.3 max | 0.3 max | 0.3 max |
| Sn | 0.3 max | 0.3 max | 0.3 max |
| Fe | 0.3 max | 0.3 max | 0.3 max |
| Ni | 11.0 - 13.0 | 17.0 - 19.0 | 17.0 - 19.0 |
| Mn | 0.5 max | 0.5 max | 0.5 max |
| Total other impurities | 0.2 max | 0.2 max | 0.2 max |
Nickel Copper Zinc Alloy mechanical properties
Physical characteristics (at 20°C) | CuNi12Zn24 CW403J | CuNi18Zn20 CW409J | CuNi18Zn27 CW410J |
| Density (kg/dm3) | 8.7 | 8.7 | 8.7 |
| Electrical conductivity (%IACS) | 7 | 5 | 5 |
| Electrical resistivity (mW.cm) | 0.4 | 0.3 | 0.3 |
| Thermal conductivity (W/m.K) | 42 | 33 | 33 |
| Modulus of elasticity (Kn/mm²) | 125 | 135 | 140 |
| Coef. of thermal expansion (10-6/K) | 18 | 17.7 | 17.5 |
| Melting temperature (°C) | 1050 | 1090 | 1055 |

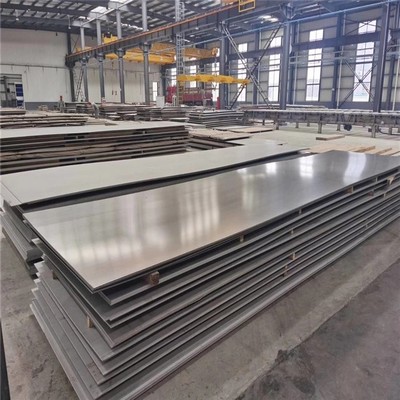

production workshop

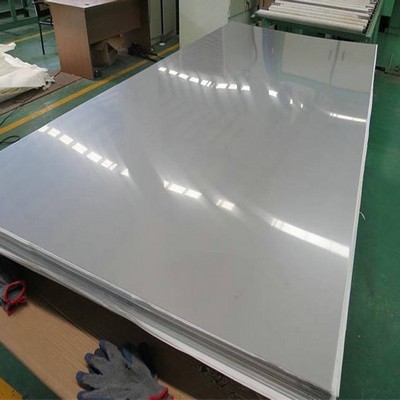

production workshop

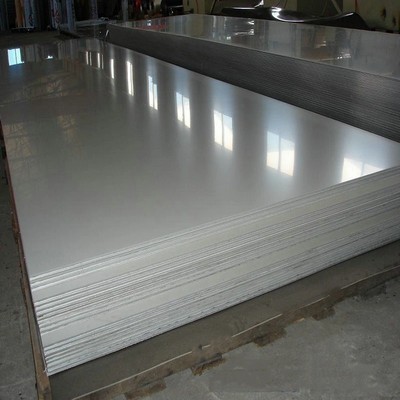

production workshop
production workshop
