NM 500 Wear Resistant Steel Plate
NM500 wear-resistant steel is widely used construction machinery, mining machinery, mining machinery, environmental protection machinery, metallurgical machinery, abrasives, bearings and other product components.NM500 is a high-strength wear-resistant steel, which has a high wear resistance, Brinell hardness value reaches 500 (HBW) mainly in the need to wear the occasion or location to provide protection to the equipment longer life, reduced maintenance brought maintenance and downtime, and the corresponding reduction of capital investments.
NM 500 Wear Resistant Steel Plate Specification
Product Name | wear resistant composite steel plates |
Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
Width: | 0.6m-3m or as required |
Length: | 1m-12m or as required |
Thickness: | 3mm-150mm |
Material | NM450L,NM450A,NM600,NM400,NM400L,NM400A,NM500A,NM500,NM360L,NM360,NM550,NM450 |
Application | mining, cement, power plant, port, steel mill |
Export packing | Waterproof paper, and steel strip packed. |
Shipment time | Within 15-20 workdays after receiving deposit |
Wear Resistant Steel Chemical composition
| Grade | Chemical Composition / % | ||||||||||
| C | Si | Mn | P | S | Cr | Ni | Mo | Ti | B | Als | |
| ≤ Not More Than | Range | ≥ | |||||||||
| NM300 | 0.23 | 0.7 | 1.6 | 0.025 | 0.015 | 0.7 | 0.5 | 0.4 | 0.05 | 0.0005~0.006 | 0.01 |
| NM360 | 0.25 | 0.7 | 1.6 | 0.025 | 0.015 | 0.8 | 0.5 | 0.5 | 0.05 | 0.0005~0.006 | 0.01 |
| NM400 | 0.3 | 0.7 | 1.6 | 0.025 | 0.01 | 1 | 0.7 | 0.5 | 0.05 | 0.0005~0.006 | 0.01 |
| NM450 | 0.35 | 0.7 | 1.7 | 0.025 | 0.01 | 1.1 | 0.8 | 0.55 | 0.05 | 0.0005~0.006 | 0.01 |
| NM500 | 0.38 | 0.7 | 1.7 | 0.02 | 0.01 | 1.2 | 1 | 0.65 | 0.05 | 0.0005~0.006 | 0.01 |
| NM550 | 0.38 | 0.7 | 1.7 | 0.02 | 0.01 | 1.2 | 1 | 0.7 | 0.05 | 0.0005~0.006 | 0.01 |
| NM600 | 0.45 | 0.7 | 1.9 | 0.02 | 0.01 | 1.2 | 1 | 0.8 | 0.05 | 0.0005~0.006 | 0.01 |
Wear Resistant Steel Mechanical Properties
| Grade | Thickness | Tensile Strength | Elongation | Impact Energy | Brinell Hardness | ||||||
| mm | Rm / Mpa | A50mm / % | KV2 / J | HBW | |||||||
| NM300 | ≤80 | ≥1000 | ≥14 | ≥24 | 270-330 | ||||||
| NM360 | ≤80 | ≥1100 | ≥12 | ≥25 | 330-390 | ||||||
| NM400 | ≤80 | ≥1200 | ≥10 | ≥26 | 370-430 | ||||||
| NM450 | ≤80 | ≥1250 | ≥7 | ≥27 | 420-480 | ||||||
| NM500 | ≤70 | - | - | - | ≥470 | ||||||
| NM550 | ≤70 | - | - | - | ≥530 | ||||||
| NM600 | ≤60 | - | - | - | ≥570 |

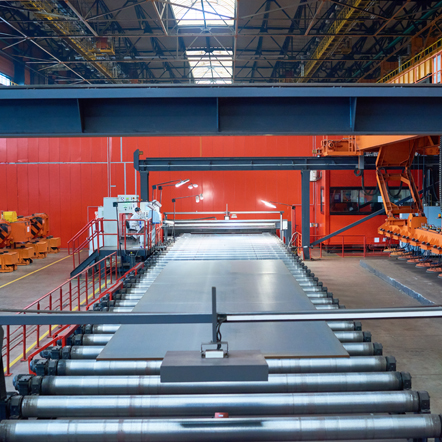

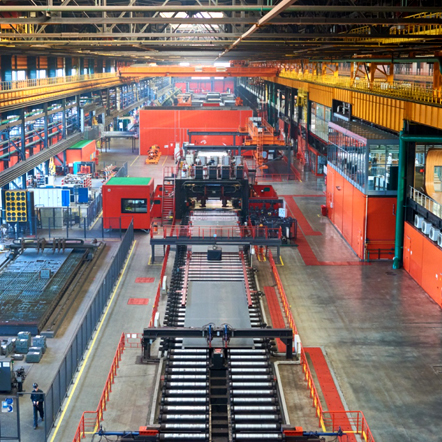

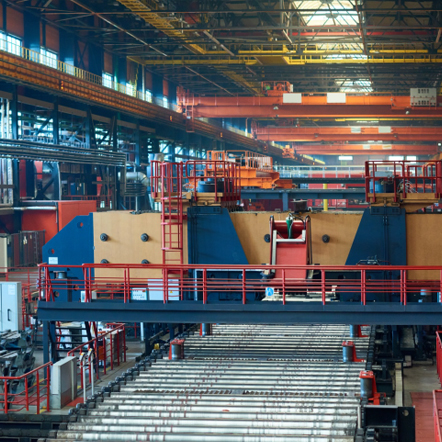

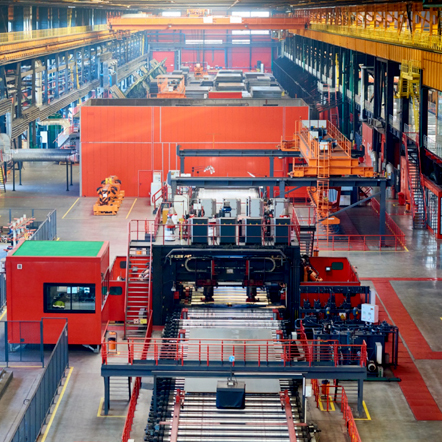

production workshop
production workshop
production workshop
production workshop
Hot Products
| carbon steel 1 4 plate 6.25 | carbon steel metal plate |
| carbon steel 1018 plate | carbon steel orifice plate |
| carbon steel 1018 solid steel plate | carbon steel pipe plate for sale |
| carbon steel 1020 plate | carbon steel plate 1 2 |
| carbon steel 5 16 plate | carbon steel plate 516 70 |
| carbon steel armor plates | carbon steel cold rolled plate |
| carbon steel bbq plate | carbon steel coil/plate factories |
| carbon steel checker plate | carbon steel 1 4 plate |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
Export area
We are a well known worldwide supply and export nm500 wear-resistant steel plate in following countries：,Italy, Philippines, France，Ireland, Portugal, Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Libya, Romania, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Ghana, Slovakia, Germany, Saudi Arabia, Afghanistan, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece, Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus, Finland, Gabon, Iran, Canada, Argentina, Lebanon.
