347 stainless steel plate application
(1) petrochemical, food, paper, etc.;(2) Exhaust manifolds and branch pipes of aero-engines;(3) Turbo compressor hot gas pipeline;(4) Parts whose operating temperature does not exceed 850°C under small loads;(5) Others.
347 stainless steel plate advantage
(1) It has excellent corrosion resistance comparable to 304 stainless steel.
(2) Inhibit the formation of chromium carbide, resist sensitization, and have good resistance to intergranular corrosion between 427°C and 816°C.
(3) Even in a high temperature and strong oxidizing environment of 816°C, it also exhibits a certain creep resistance strength.
(4) Easy to form and weld.
(5) It has good low temperature toughness.
Overall, 347 performs similarly to, but better than, 321 (304 plus titanium).
347 stainless steel plate chemical composition
Chemical Composition (%) of 347 Stainless Steel Plate
| Chromium | Nickel | Carbon | Silicon | Manganese | Phosphorus | Sulfur | Nitrogen |
| 17.00-19.00 | 9.00-13.00 | 0.08 max | 0.75 | 2.00 max | 0.045 max | 0.03 max | - |
347 stainless steel plate mechanical property
Mechanical Properties of 347 Stainless Steel Plate
| Yield Strength 0.2% Offset | Ultimate Tensile Strength | Elongationin 2 in. | Hardness | ||
| psi (min.) | (MPa) | psi (min.) | (MPa) | % (min.) | (max.) |
| 30,000 | 205 | 75,000 | 515 | 40 | 201 Brinell |
347 stainless steel plate specification
Product Name | Stainless Steel Sheet |
Material | 201, 202, 301, 302, 304, 304L, 310S, 316, 316L, 321, 347，430, 430A, 309S, 2205, 2507, 2520, 430 , 410, 440, 904Lect, Or Customized |
Technique | Cold Rolled/Hot Rolled |
Thickness | 0.1~6 mm |
Width | 10~2000 mm |
Standard | ASTM, JIS, GB, AISI, DIN, BS,EN |
Payment terms | 30%TT+70% Balance |
Price Terms | EXW,FOB,CFR,CIF |
Packing | Industry standard packaging or according to client's requirement |
Loading Port | QingDao/TianJin/ShangHai |

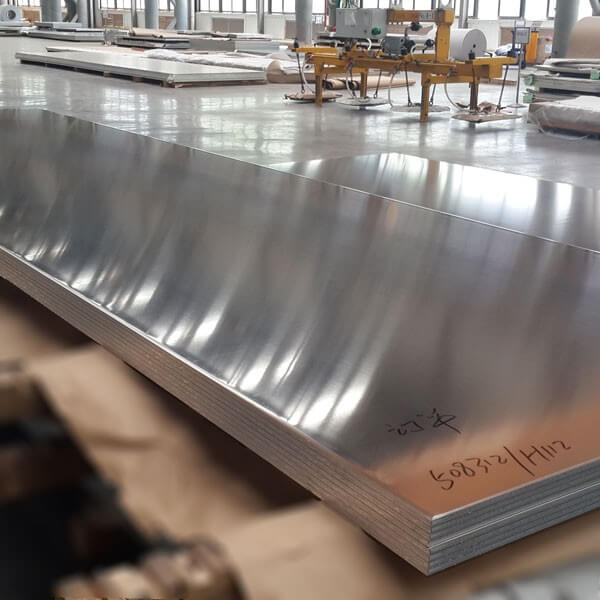

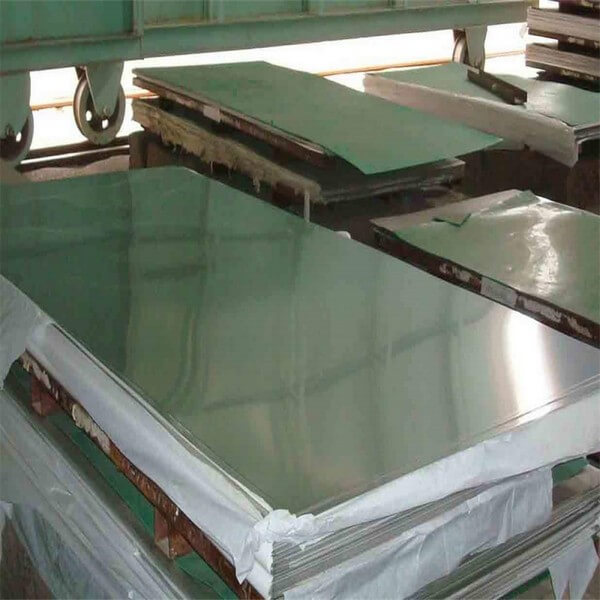

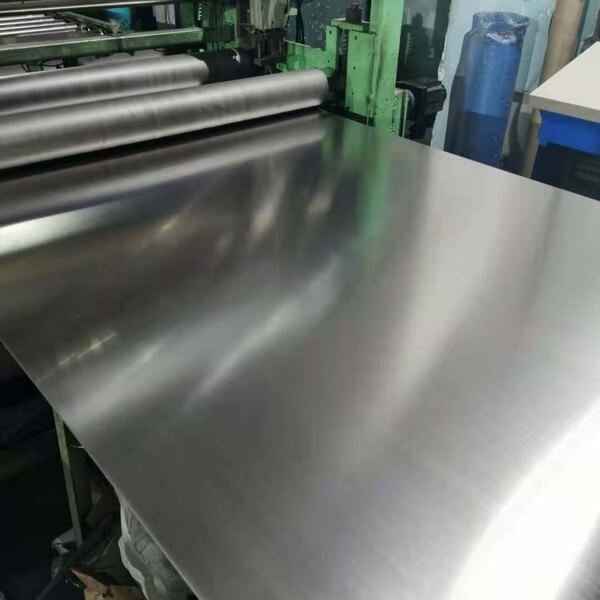

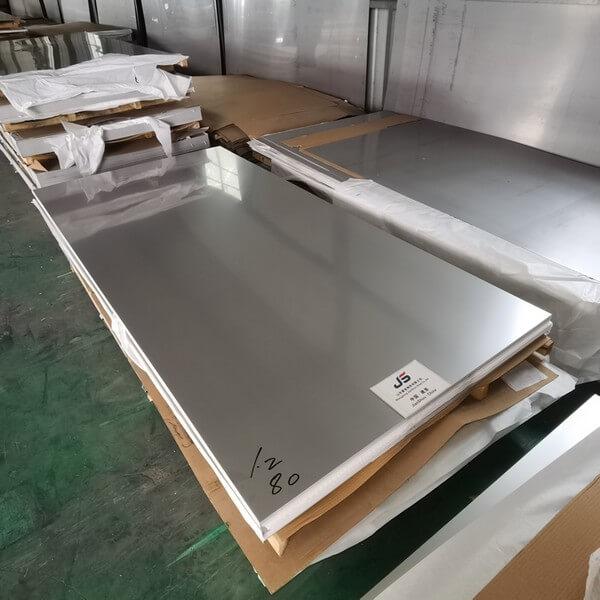

production workshop
production workshop
production workshop
production workshop
hot sale product
| 301 cold rolled stainless steel plate suppliers | 304 304l 316 316ti 316l stainless steel plate |
| 301 stainless steel plate factory | 304 stainless steel plate supplier |
| 304 2b stainless steel plate | 201 stainless steel nksstainless steel plate |
| 301 stainless steel plate manufacturers | 310s stainless steel plate |
| 301 stainless steel plate price | 202 ba stainless steel plate |
| 316 stainless steel plate for sale | 202 stainless steel plate |
| 304 stainless steel plate factories | 316l cold rolled stainless steel plates |
| 409l stainless steel plate manufacturers | 316l hot rolled stainless steel plates |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
stainless steel plate outlet
We are a well known worldwide supply and export stainless steel plate in following countries：,Italy, Philippines, France，Ireland, Portugal, Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Libya, Romania, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Ghana, Slovakia, Germany, Saudi Arabia, Afghanistan, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece, Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus, Finland, Gabon, Iran, Canada, Argentina, Lebanon.
