403 stainless steel plate application
403 stainless steel is mainly used for steam turbine blades and high-stress components, pulp mill bleaching systems, seawater treatment equipment, high-oil distillation towers and equipment, generally not up to food grade, and not used for tableware.
403 stainless steel plate advantage
403 stainless steel has better heat resistance, high strength and hardness. 403 stainless steel is highly resistant to atmospheric corrosion because of its ability to form a tightly adherent oxide film. Maximum corrosion resistance is obtained by hardening and polishing.
403 stainless steel is an excellent stainless steel and heat-resistant steel for turbine blades and high-stress components. 403 stainless steel belongs to martensitic stainless steel, containing 12% to 30% chromium. Its corrosion resistance, toughness and weldability increase with the increase of chromium content, and its resistance to chloride stress corrosion is better than other types of stainless steel. Martensite is one of the microstructure types of steel. The mass fraction of chromium in this type of steel is 11.5%~18.0%, while the mass fraction of carbon can reach up to 0.6%. The increase of carbon content increases the strength and hardness of steel. Its mechanical properties can be adjusted by heat treatment, but the weldability of this type of steel is poor.
403 stainless steel plate chemical composition
Chemical Composition (%) of 403 Stainless Steel Plate
| Cr | Ni | C | Si | Mn | P | S |
| 11.5-13.0 | 0.60 | 0.15 | 0.5 | 1.0 | 0.04 | 0.03 |
403 stainless steel plate mechanical property
Mechanical Properties of 403 Stainless Steel Plate
| Tensile Strength ksi (min.) | Yield Strength 0.2% Offset ksi (min.) | Elongation - % in 50 mm (min.) | Hardness (Rockwell B) MAX |
| 70 | 30 | 25 | 98 |
403 stainless steel plate specification
Grade | 201/202/301/303/304/304L/316/316L/321/309S/310S/401/409/410/410S/420/420J1/420J2/430/439/443/444/2205/2507/2020/253MA/904L/403 |
Surface Finish | 2B, BA, NO.1, NO.4, 8K, HL, Embossing, Satin, Mirror, brush, ect |
Standard | JIS/SUS/GB/DIN/ASTM/AISI/EN |
Technique | Cold Rolled; Hot Rolled |
Thickness | 0.3-4mm cold rolled; 3-16mm hot rolled; 16-100mm hot rolled; Customized according to customer requirements |
Width | 1000mm, 1219mm, 1240mm, 1500mm, 1800mm, 2000mm,or as required |
Length | 2000mm, 2438mm, 2500mm, 3000mm, 6000mm or as required |
Color | Interior/Exterior decoration; Architectur; Evevator; Kitchen; Ceiling; Cabinet; Advertising nameplate; Roof structure; |
Lead Time | 7-15 working days after the receipt of 30% deposit |
Payment Terms | TT/LC |
Price Terms | FOB, EXW, CIF, CFR |
Package | Wooden Pallet or according to customer's requirements |

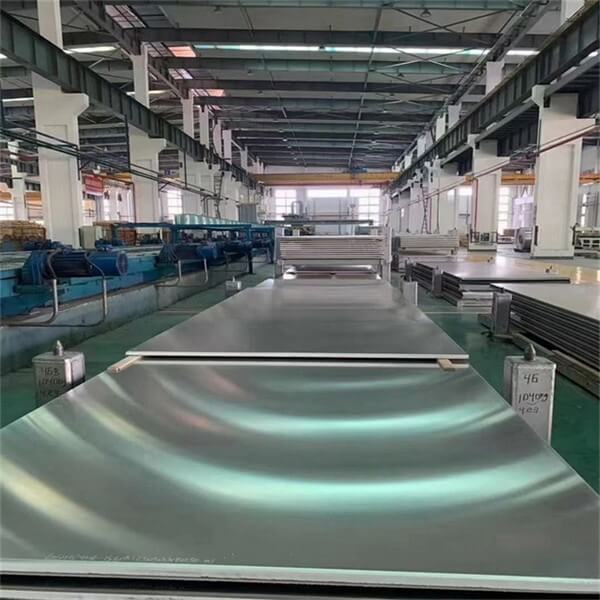

production workshop
