317L stainless steel pipe advantage
317L stainless steel pipe (UNS S31703) for applications that require higher corrosion resistance than 304 and 316 stainless steel pipes. Alloy 317L stainless steel tubes have higher corrosion resistance austenite content relative to alloy 316L due to the addition of approximately one percent molybdenum.The additional molybdenum gives 317L stainless steel alloy tubing greater resistance to chloride and other halides, particularly making it a strong candidate for offshore applications or processing applications such as pulp and paper processes that involve such corrosive environments. Through improved chemical properties, 317L alloy tubes have higher creep, stress fracture and tensile strength at high temperatures compared to conventional stainless steel tubes.
317L stainless steel pipe chemical composition
Chemical Composition (%) of 317/317L Stainless Steel
| Carbon | Silicon | Sulfur | Phosphorus | Chromium | Molybdenum | Manganese | Nickel | Nitrogen |
| 0.030 | 0.75 | 0.030 | 0.045 | 18.0-20.0 | 3.0-4.0 | 2.00 | 11.0-15.0 | 0.10 |
317L stainless steel pipe mechanical property
Mechanical Properties of 317/317L Stainless Steel
| Yield Strengtd 0.2% Offset | Ultimate Tensile Strength | Elongation in 2 in. | Hardness | ||
| psi (min.) | (MPa) | psi (min.) | (MPa) | % (min.) | (max.) |
| 30,000 | 205 | 75,000 | 515 | 40 | 95 Rockwell B |
317L stainless steel pipe specification
Item | Stainless Steel Pipe/Tube | |
Standard | ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605, | |
Material | 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202 | |
Surface | Polishing,annealing,pickling,bright | |
Type | hot rolled and cold rolled | |
Stainless steel round pipe/tube | ||
Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
Outer diameter | 1mm-150mm(SCH10-XXS) | |
stainless steel square pipe/tube | ||
Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
Outer diameter | 4mm*4mm-800mm*800mm | |
stainless steel rectangular pipe/tube | ||
Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
Outer diameter | 1mm-150mm(SCH10-XXS) | |
Length | 4000mm,5800mm,6000mm,12000mm,or as required. | |
Element | 201 | 202 | 304 | 316 | S31803 | S32750 | |
C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.030 | ≤0.030 | |
Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤0.80 | |
Mn | 5.5-7.5 | 7.5-10.0 | ≤2.00 | ≤2.00 | ≤2.00 | ≤1.20 | |
P | ≤0.060 | ≤0.060 | ≤0.045 | ≤0.045 | ≤0.030 | ≤0.035 | |
S | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.020 | ≤0.020 | |
Cr | 16-18 | 17-19 | 18-20 | 16-18 | 21-23 | 21-23 | |
Ni | 3.5-5.5 | 4.0-6.0 | 42958 | 43022 | 4.5-6.5 | 6.0-8.0 | |
Mo | 2.0-3.0 | 2.5-3.5 | 3.0-5.0 | ||||
N | ≤0.25 | ≤0.25 | 0.08-0.2 | 0.24-0.32 | |||
Cu | ≤0.50 |

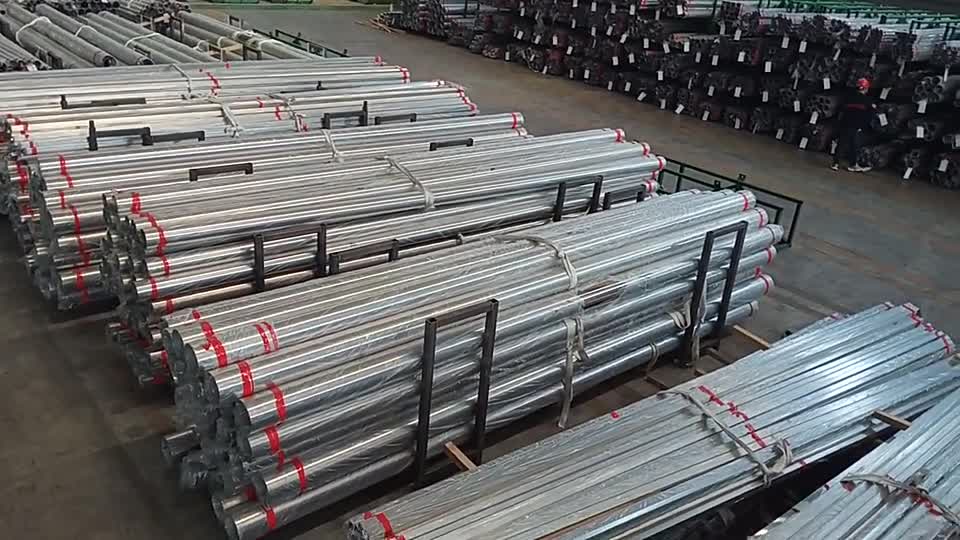

production workshop
production workshop
production workshop
production workshop
hot sale product
| 304 stainless steel pipe factories | 316l cold rolled stainless steel pipes |
| 409l stainless steel pipe manufacturers | 316l hot rolled stainless steel pipes |
| 409l stainless steel pipe price | 321 stainless steel pipe factory |
| 410 cold rolled stainless steel pipe | 321 stainless steel pipe manufacturers |
| 400 series stainless steel magnetic round pipe | aisi 201 stainless steel pipe 2b finish |
| 409l stainless steel pipe price | aisi 201 stainless steel pipe strip |
| 410 cold rolled stainless steel pipe | aisi 304 2b stainless steel pipe |
| 400 series stainless steel magnetic round pipe | aisi 304 2d stainless steel pipes |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
stainless steel pipe outlet
We are a well known worldwide supply and export stainless steel pipe in following countries：,Italy, Philippines, France，Ireland, Portugal, Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Libya, Romania, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Ghana, Slovakia, Germany, Saudi Arabia, Afghanistan, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece, Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus, Finland, Gabon, Iran, Canada, Argentina, Lebanon.
