409L Cold Rolled Stainless Steel Coil description
409/409l cold rolled stainless steel begins to crystallize after pouring, the supercooling degree of the liquid phase is largely due to direct contact with the surface of the crystallizer, and at the same time, the surface of the crystallizer promotes non-spontaneous nucleation. Therefore, the nucleation rate of the liquid phase is high and the formation rate is high. Fine equiaxed crystals on the surface. The formation of fine equiaxed grains on the surface is rapid, and the carbides of titanium are too short to precipitate.
409L Cold Rolled Stainless Steel Coil Chemical Composition
| Grade | C | Si | Mn | S | P | Cr | Ni | Ti |
|---|---|---|---|---|---|---|---|---|
| ss 409 | ≤0.08 | ≤1.0 | ≤1.0 | ≤0.03 | ≤0.045 | 10.5～11.7 | 0.5 Max | 6xC – 0.75 |
| ss 409l | ≤0.03 | ≤1.0 | ≤1.0 | ≤0.03 | ≤0.045 | 10.5～11.7 | 0.5 Max | 6xC – 0.75 |
409L Cold Rolled Stainless Steel Coil Mechanical Property
- Tensile strength : > 380 Mpa
- Yield Strength : >205 Mpa
- Elongation (%): > 20%
- Hardness: < HRB88
- Bending Angle: 180 degree
409L Cold Rolled Stainless Steel Coil specification
| Thickness | 0.2mm – 8.0mm, etc. |
|---|---|
| Width | 600mm – 2000mm, the narrowed products pls check in strip products |
| Max coil weight | 25MT, etc. |
| Coil ID | 508mm,610mm, etc. |
| Finish | 2B, 2D, BA, No.4, HL, Mirror, 8k, Emboss, Etch, etc. |
| Packaging | Wooden pallets, waterproof paper |
| Service | Samples and MTC can be provided as per your requirements. |
| Origin | China (Mainland) |
| Mill | TISCO, YUSCO, LISCO, JISCO, POSCO, ZPSS, QPSS, Baosteel, etc. |

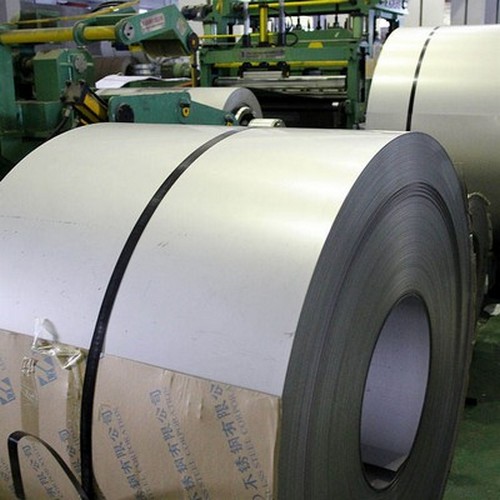

production workshop
production workshop
production workshop
production workshop
Hot sale product
| stainless steel 316 coil | 201 2b stainless steel coil |
| stainless steel 409 sheet plates coils | 201 304 309s grade stainless steel coil |
| stainless steel 409l coils | 201 304 316 316l half hard stainless steel coil |
| stainless steel 409l coils stockist | 201 304 316 316l stainless steel coil strip |
| stainless steel coil 201 | 201 304 316 stainless steel coil |
| stainless steel coil 316 | 201 antique stainless steel coil |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
