Grade D marine steel Description :

ABS grade D steel is a kind of hot rolled general tensile strength steel. All the ABS/D shipbuilding Steel offered by Katalor Industry can be certificated by American Bureau of Shipping(ABS).The ABS D grade steel plates have yield strength of 34,100 psi (235 MPa), and ultimate tensile strength of 58,000 - 75,500 psi (400-520 MPa).

Grade D shipbuilding Steel Application:

ABS D Shipbuilding steel plates are mainly used for shipbuilding and ship repairing, the offshore oil drilling platform, the platform pipe joints and other components.

ABS Grade D Steel Grade Specification:

1、Thickness: 4mm to 260mm,
2、Width: 1200mm to 4000mm
3、Length: 3000mm to 18000mm.

Grade D marine steel Chemical Composition

Element	ABS Grade D Max %	Element	ABS Grade D max %
C	0.21	Ni	-
Mn	0.60	Mo	-
Si	0.1-0.35	Al	-
S	0.035	Nb	-
P	0.035	V	-
Cu	-	Ti	-
Cr	-	N	-

Grade D marine steel Mechanical Properties

Grade	Thickness	Yield Strength	Tensile Strength	Elongation	Impact Energy
	(mm)	MPa (min)	MPa	% (min)	(KV J) (min)
					-20 degree
Grade D	4-260	235	400-520	22	27J

marine steel classification

Standard	Shipbuilding and Offshore Structure Steel Grades
ASTM A131	Grade A	Grade B	Grade D	Grade E
	AH32	DH32	EH32	FH32
	AH36	DH36	EH36	FH36
	AH40	DH40	EH40	FH40
EN 10225	S355G2+N	S355G3+N	S355G5+M	S355G6+M
	S355G7+M	S355G7+N	S355G8+M	S355G8+N
	S355G9+N	S355G9+M	S355G10+N	S355G10+M
	S420G1+Q	S420G1+M	S420G2+Q	S420G2+M
	S460G1+Q	S460G1+M	S460G2+Q	S460G2+M
API SPEC 2H	API 2H-42	API 2H-50

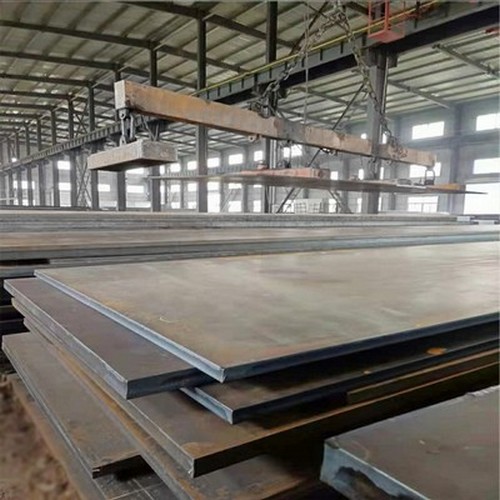

production workshop
