Grade E marine steel
Grade E marine steel Description:
ABS grade E steel is a kind of hot rolled general tensile strength steel. The ABS E grade steel plates have yield strength of 34,100 psi (235 MPa), and ultimate tensile strength of 58,000 - 75,500 psi (400-520 MPa). ABS steels come 4 grades in ordinary-strength steel for shipbuilding and grade E is the highest one of them.Grade E marine steel Specification:
1、Thickness: 4mm to 260mm,2、Width: 1200mm to 4000mm
3、Length: 3000mm to 18000mm.
Grade E marine steel Application:
ABS E grades of steel plate are almost exclusively used in the Shipbuilding Industry for the construction of structural parts of ships, barges and marine equipment. ABS E Shipbuilding steel plates also can be used for ship repairing, the offshore oil drilling platform, the platform pipe joints and other components. The grade E steel is certified by ABS – American Bureau of Shipping.Product Specification
Grade E marine steel Chemical Composition Heat Analysis:
| Element | ABS Grade E Max % | Element | ABS Grade E max % |
C | 0.21 | Ni | - |
Mn | 0.60 | Mo | - |
Si | 0.1-0.35 | Al | - |
S | 0.035 | Nb | - |
P | 0.035 | V | - |
Cu | - | Ti | - |
Cr | - | N | - |
Grade E marine steel Mechanical Properties:
Grade | Thickness | Yield Strength | Tensile Strength | Elongation | Impact Energy |
(mm) | MPa (min) | MPa | % (min) | (KV J) (min) | |
-20 degree | |||||
ABS Grade E | 4-260 | 235 | 400-520 | 22 | 27J |
Chemical composition of Grade E marine steel
| Grade | C | Si | Mn | P | Su |
| ABS Grade E | 0.21 | 0.6 | 0.1-0.35 | 0.035 | 0.035 |
Mechanical property of Grade E marine steel
| Grade | Yield Strength (MPa) | Ultimate Tensile Strength (MPa) | Elongation at Break (%) |
| ABS Grade E | 235 | 400-520 | 22 |

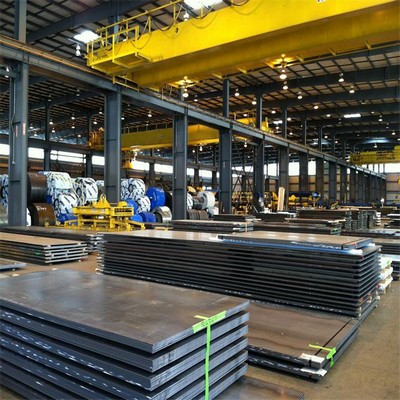

production workshop
