DH32 marine steel Description
DH32 steel is a kind of nbsp;hot rolled high tensile strength steel. Higher-strength ABS shipbuilding steel comes in 12 grades of 3 strengths, DH32 is one of the grades.The DH32 grade steel plates have yield strength of 45,500 psi (315 MPa), and ultimate tensile strength of 64,000 - 85,000 psi (440-590 MPa).
DH32 marine steel advantage
DH32 marine steel has good toughness, high strength, strong corrosion resistance, machining performance and good welding performance. Shipbuilding steel grade DH32 is used for shipbuilding and oil platform, and has been recognized by classification societies such as ABS, DNV, GL, BV, LR, NK and RINA. In addition, DH32 shipbuilding steel plates can be used to build structures with hull weights up to 10,000 tons
DH32 marine steel application
DH32 Shipbuilding steel plates are suitable for container and bulk cargo vessels as well as cruise ships, ferries and yachts.
DH32 marine steel Chemical Composition
Grade | C % | Si % | Mn % | P % | S % | V % | AL % | Cr % |
ABS Grade DH32 | 0.180 | 0.1-0.5 | 0.90-1.6 | 0.035 | 0.035 | 0.05-0.10 | 0.015 | 0.200 |
Cu % | Mo % | Nb % | Ni % | Ti % | ||||
0.350 | 0.080 | 0.02-0.05 | 0.400 | 0.020 |
DH32 marine steelMechanical Properties
Grade | Thickness(mm) | MinYield(Mpa) | Tensile(Mpa) | Elongation (%) | Min Impact Energy | |
ABS Grade DH32 | 8mm-50mm | Min 315Mpa | 440-590Mpa | 22% | -20 | 34J |
51mm-70mm | Min 315Mpa | 440-590Mpa | 22% | -20 | 38J | |
71mm-100mm | Min 315Mpa | 440-590Mpa | 22% | -20 | 46J | |
The min impact energy is longitudinal energy | ||||||
DH32 marine steel specification
Length | 4m-12m or as required | ||
Width | 0.6m-3m or as required | ||
Thickness | 3mm-300mm or as required | ||
Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. | ||
Technique | Hot rolled or cold rolled | ||
Surface Treatment | Clean, blasting and painting according to customer requirement | ||
Thickness tolerance | ±0.1mm | ||
Material | DH32 | ||
MOQ | 25tons.We also can accept sample order. | ||
Shipment time | Within 15-20 workdays after receiving deposit or L/C | ||
Export packing | Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required | ||
Capacity | 250,000 tons/year | ||
Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft | ||

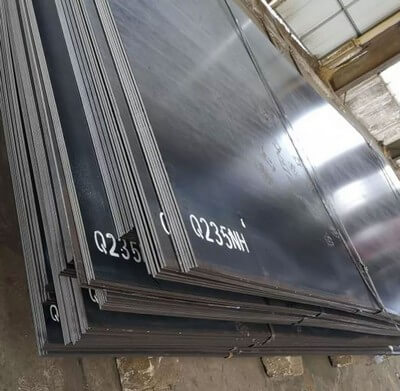

production workshop

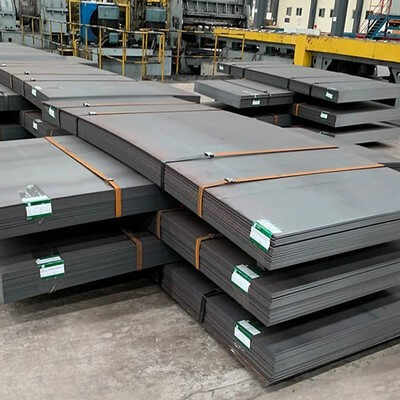

production workshop

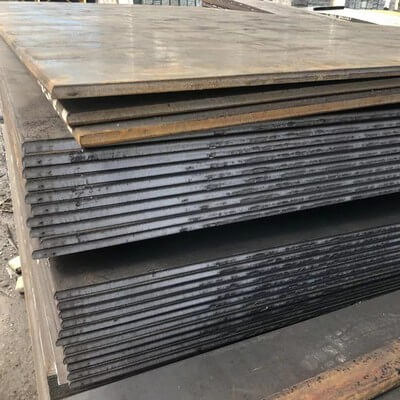

production workshop
