316 stainless steel rod Description
316 stainless steel rod advantage
1、 cold rolled products appearance good gloss, beautiful;
2、add Mo, corrosion resistance, especially excellent pitting resistance;
3、 Excellent high temperature strength;
4、 excellent work hardening (weak magnetism after processing)
5、solid solution state no magnetism;
6、relatively 304 stainless steel, the price is higher.
7、316 stainless steel containing molybdenum and low carbon content, in the Marine and chemical industry environment in the point corrosion resistance is much better than 304 stainless steel!
316 stainless steel rod chemical composition
C ：≤0.08， Si：≤1.00， Mn：≤2.00，S ：≤0.030，P ：≤0.035，Cr：16.00～18.50，Ni：10.00～14.00，Mo：2.00～3.00
316 stainless steel rod mechanical property
σb (MPa)：≥520σ0.2 (MPa)：≥205
δ5 (%)：≥40
ψ (%)：≥60
：≤187HB;≤90HRB;≤200HV
316 stainless steel rod Specification
Product | 316 stainless steel rod |
Grade | 300 Series: 303, 304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347 |
Standard | ASME, ASTM, EN, BS, GB, DIN, JIS etc |
Technique | Cold Rolled, Hot Rolled, Forging |
Surface | Annealed & Pickled, Bright, Polished, HL, Black |
Size | Round Rod: Diameter: 3mm~800mm |
Packing | Bundled,wooden box for export standard package |
Delivery Time | 7-15 days,or according to the order quantity or upon negotiation |
MOQ | 500 KGS |

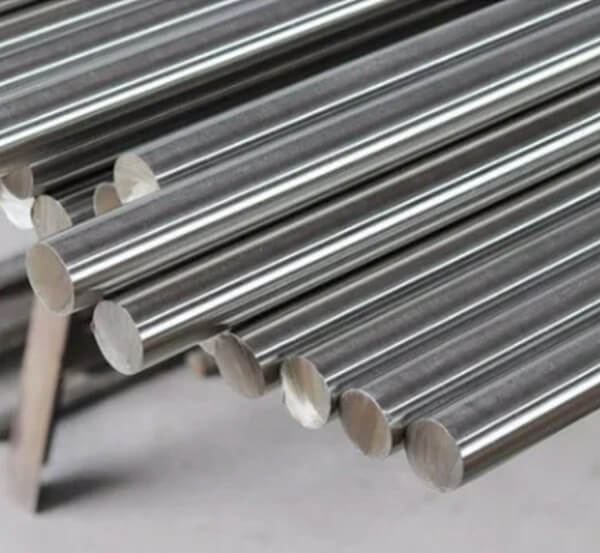

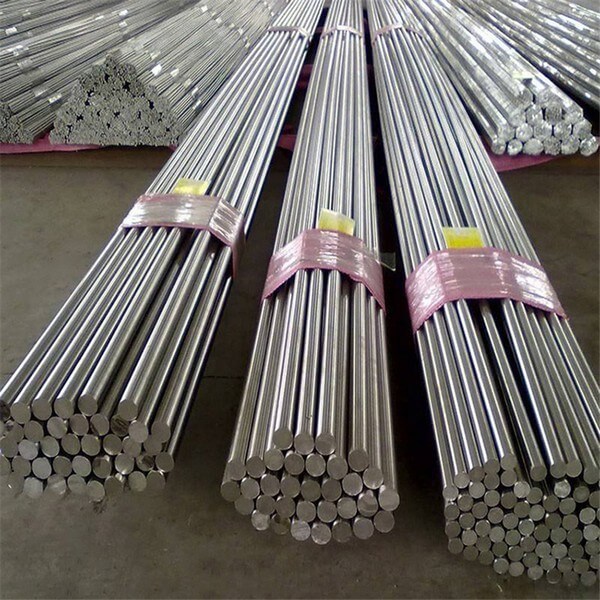

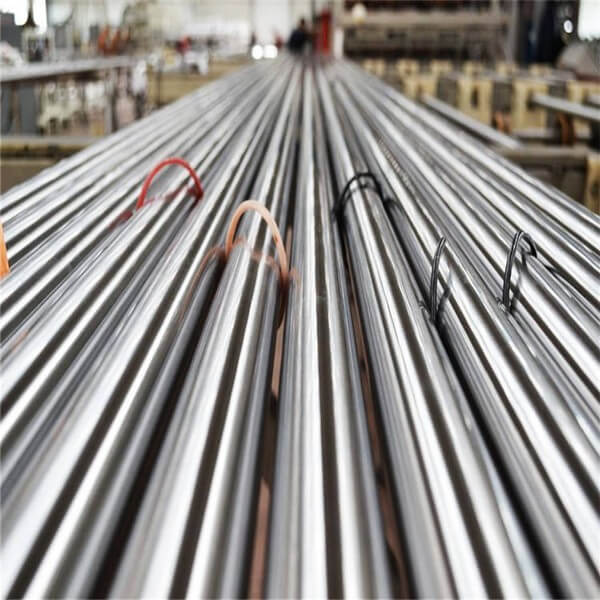

316 stainless steel rod Show

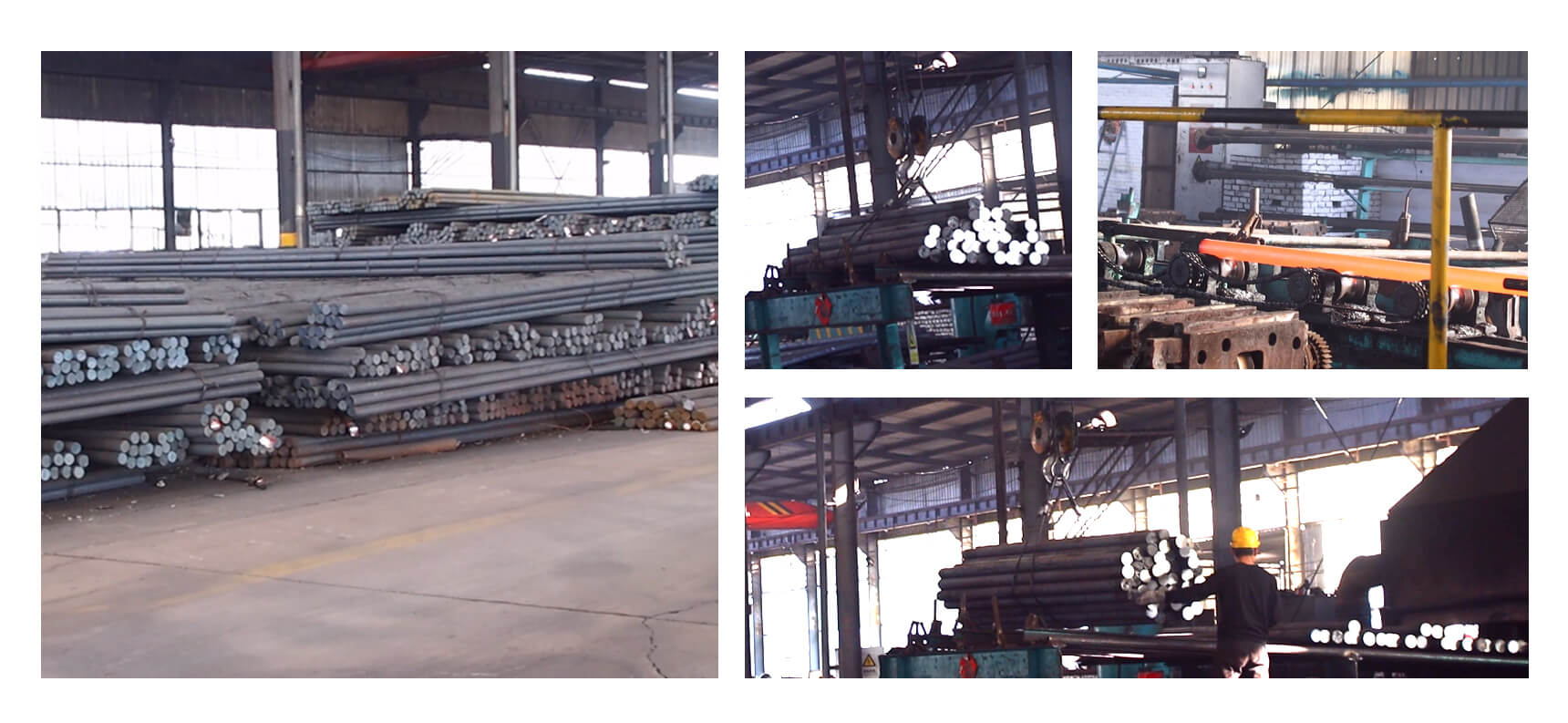

Factory show
316 stainless steel rod chemical composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 | Min | - | - | - | 0 | - | 16 | 2 | 10 | - |
| Max | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | 0.1 | |
| 316L | Min | - | - | - | - | - | 16 | 2 | 10 | - |
| Max | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | 0.1 | |
| 316H | Min | 0.04 | 0.04 | 0 | - | - | 16 | 2 | 10 | - |
| max | 0.1 | 0.1 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | - |
316 stainless steel rod mechanical properties
| Grade | Tensile Str | Yield Str | Elong | Hardness | |
| (MPa) min | 0.2% Proof | (% in 50mm) min | |||
| (MPa) min | Rockwell B (HR B) max | Brinell (HB) max | |||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
| 316H | 515 | 205 | 40 | 95 | 217 |

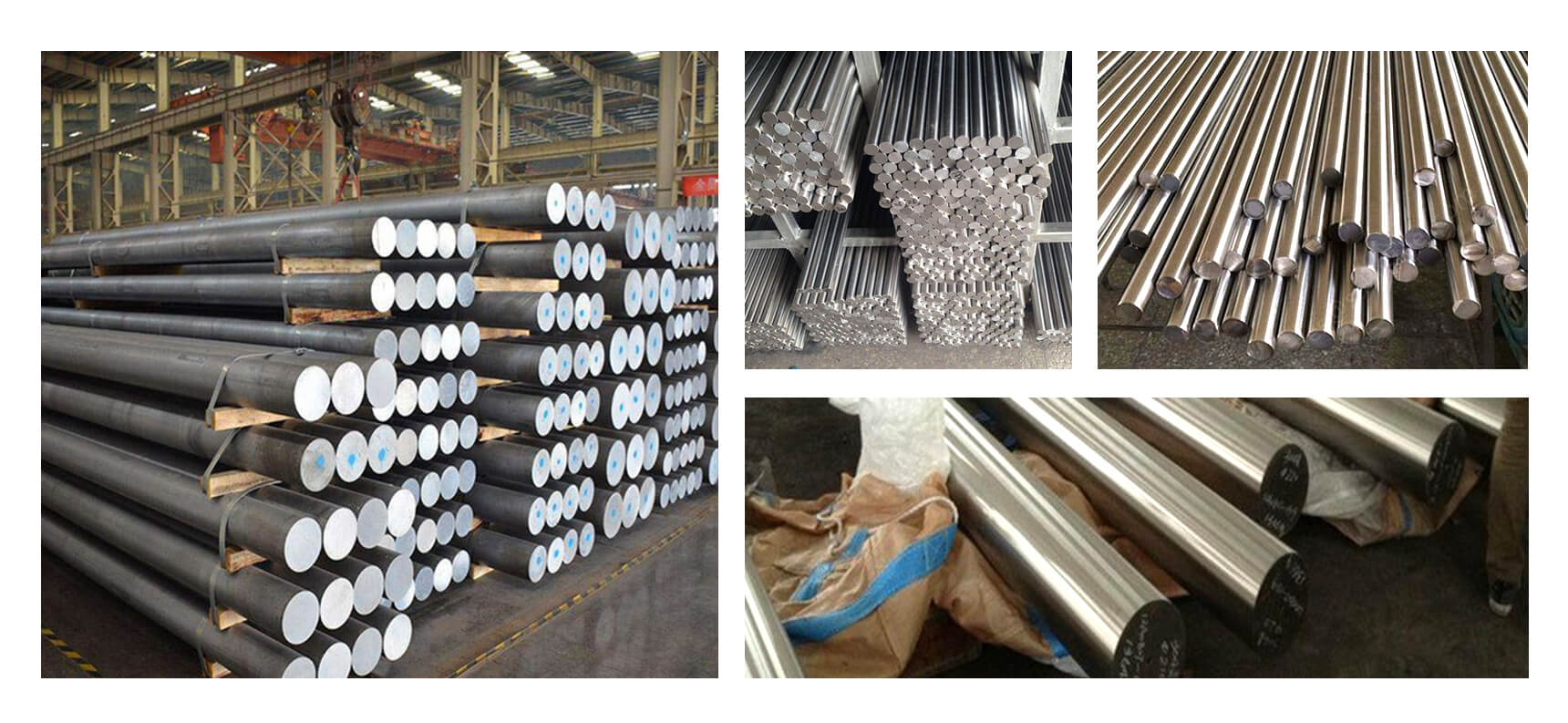

production workshop
production workshop
production workshop
production workshop
Hot Products
| cheap stainless steel rod | 4mm stainless steel threaded rod |
| food grade stainless steel rod | 5/8 inch stainless steel rod |
| hollow stainless steel rods | 6 mm stainless steel rod |
| half round stainless steel rod | 7/16 stainless steel rod |
| m6 stainless steel rod | 7/32 stainless steel rod |
| minimum bend radius stainless steel rod | 7/8 stainless steel rod |
| square stainless steel rod | 8mm 304 stainless steel rod |
| stainless steel 12mm rod | 9/32 stainless steel rod |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
