High Carbon Steel Plate Description
High Carbon Steel Description
High carbon steel after proper heat treatment or cold drawing hardening, has high strength and hardness, high elastic limit and fatigue limit, machinability is good, but welding performance and cold plastic deformation ability is poor. Due to the high carbon content, cracks are easy to occur during water quenching, so double liquid quenching is often used, and oil quenching is often used for small section parts. This type of steel is usually used after quenching by tempering or normalizing at medium temperature or in the surface quenching state. It is mainly used to make springs and wear-resistant parts. Carbon tool steel is a kind of high carbon steel which basically does not add alloying elements. It is also a kind of steel with low cost, good cold and hot workability and wide range of use. With a carbon content of 0.65 to 1.35%, it is specially used for tool making. High carbon steel density 7.81g/cm³. Can be used in the production of fishing gear.
High Carbon Steel advantage
1. High hardness (HRC60-65) and good wear resistance can be obtained after heat treatment.
2, annealing state hardness is moderate, with good machinability.
3. Easy access to raw materials and low production cost.
High Carbon Steel Application:
1、High carbon Steel is used mainly for cutting edges, compression springs, farming and gardening equipment, and other high-wear applications.
2、High carbon Steel can be also used for applications in which high strength, hardness and wear resistance are necessary, such as wear parts, knives, saw blades, springs, gear wheels, chains, brackets, washers etc. The formability is improved if the material is annealed before forming.
high carbon steel plate Specification
Product Name | High Carbon Steel Sheet |
Material | Q345B,Q345C,Q345D,Q345E,Q390,Q390B,Q390C,Q390D,Q390E Q420,Q420B,Q420C,Q420D,Q420E,Q460,Q460D Q500C,Q500D,Q500E,Q550C,Q550D,Q550E |
Thickness | 0.1-300mm.or as your request |
Width | 600mm-1800mm |
Length | 1m-12m or according to customer's special request |
Standard | AISI,ASTM,JIS,DIN,GB,SUS |
Tolerance | Thickness: +/-0.02mm, Width:+/-2mm |
Technique | Hot Rolled,Cold Rolled |
Application | Machine parts, Metal components, Agricultural machinery, Machine tools, Ships, Bridge etc |
Payment Term | TT or LC |
Price Term | EXW/FOB/CIF/CFR |
Sample | Available |
high carbon steel plate chemical composition
| Carbon (max) | Manganese* | Phosphorus (max) | Sulfur (max) | Silicon | Copper (max) | Nickel (max) | Chromium (max) | Molybdenum (max) | Vanadium (max) | Niobium (max) |
| 0.35 | 0.60-1.05 | 0.035 | 0.04 | 0.10-0.35 | 0.4 | 0.4 | 0.3 | 0.12 | 0.08 | 0.02 |
high carbon steel plate mechanical properties
| Tensile strength (psi) min | Yield strength (psi) min | Elongation in 2” (%) min | Reduction of area (%) min | Brinell Hardness (BHN) max |
| 70,000 psi | 36,000 psi | 22% | 30% | 187 |

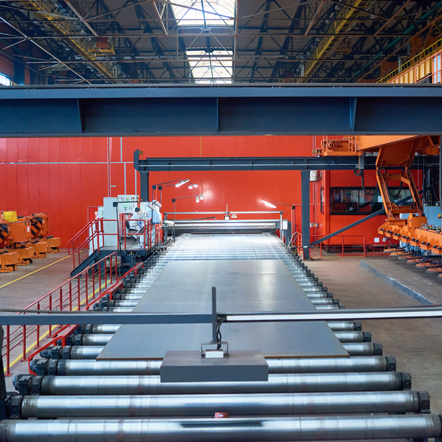

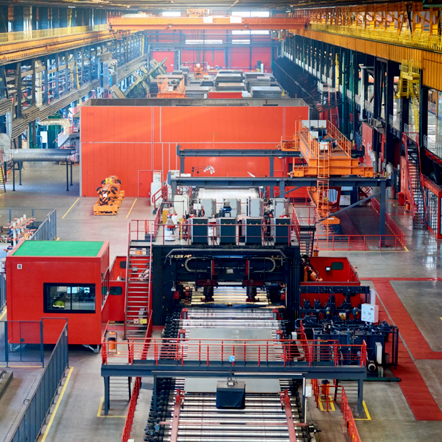

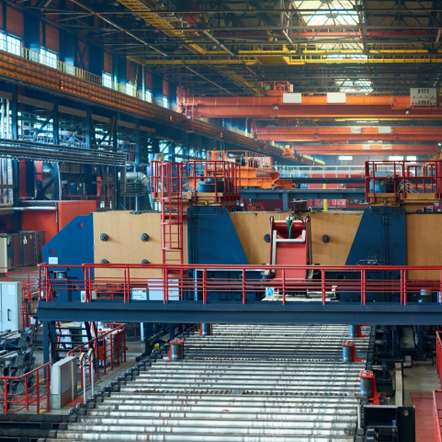

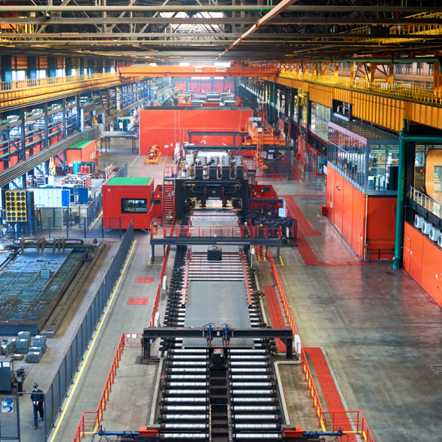

production workshop
production workshop
production workshop
production workshop
Hot Products
| 1010 carbon steel plate | 1049 carbon steel plates |
| 1015 carbon steel plate | 1055 carbon steel plate |
| 1018 carbon steel plate | 1060 carbon steel plate |
| 1020 carbon steel 1 8 plate | 1060 carbon steel plates |
| 1020 carbon steel plate | 1070 high carbon steel plate |
| 1025 carbon steel plate | 1075 carbon steel plate |
| 1030 carbon steel plate | 1075 high carbon steel plate |
| 1035 carbon steel plate | 1080 carbon steel plate |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
Export area
We are a well known worldwide supply and export carbon steel sheet plate in following countries：,Italy, Philippines, France，Ireland, Portugal, Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Libya, Romania, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Ghana, Slovakia, Germany, Saudi Arabia, Afghanistan, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece, Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus, Finland, Gabon, Iran, Canada, Argentina, Lebanon.
