C45 carbon steel plate application
1、Axle and axle manufacturing materials2、Materials for making knives and paint scrapers3、Studs and spindles4、Parts for the automobile industry5、Parts in different engineering applications6、It's used to make different gears
C45 carbon steel plate advantage
C45 carbon steel plate are made from a high-quality material that exhibits excellent tensile strength as well as wear & tear properties. These sheets & plates have superior corrosion resistance, making them a preferred choice in industrial and commercial applications.
C45 carbon steel plate have a wide range of uses due to their excellent tensile strength, wear & tear properties, and superior corrosion resistance. These sheets & plates are suitable for heavy-duty applications such as construction and engineering projects. They are also used in industrial processes for manufacturing products like automotive components, pumps, and valves. The properties of Carbon Steel C45 Sheet and Plates make them an ideal choice for these applications.
- 1、Optimum durability 2、Superior finish 3、Hardness 4、Superior finish 5、Ductility 6、Long service life 7、Corrosion and wear resistance 8、Robust construction 9、Resistance to atmospheric corrosion 10、High ductility
C45 carbon steel plate chemical composition
| C45 carbon steel plate chemical composition | |||||||
| C | Si | Mn | S | P | Cr | Ni | Mo |
| 0.42～0.50 | ≤0.40 | 0.50～0.80 | ≤0.045 | ≤0.045 | ≤0.40 | ≤0.40 | ≤0.10 |
C45 carbon steel plate mechanical property
| C45 carbon steel plate mechanical property | |
| Tensile strength σb (MPa) | ≥600（61） |
| Yield strength σs (MPa) | ≥355(36) |
| Elongation δ5 (%) | ≥16 |
| Reduction rate of cross-section (%) | ≥40 |
| Impact power Akv (J) | ≥39 |
| Impact toughness value αkv (J/cm2) | ≥49(5) |
| Hardness: no heat treatment | ≤229HB |
| Annealed steel | ≤197HB |
C45 carbon steel plate specification
Item | steel sheet/plate |
Description | ASTM A36, SS400, Q235B,S235JR，C45 |
Standard | ASTM,AISI,SUS,JIS,EN,DIN,BS,GB |
Material | ASTM A36, SS400, Q235B, S235JR |
Finish(Surface) | Black painted or as your request |
Exported Area | USA,UAE,Europe,Asia,Middle East,Africa,South America |
Thickness | Form 0.3mm to 100mm |
Width | 1000mm,1219mm(4feet),1250mm,1500mm,1524mm(5feet),1800mm,2200mm or we can also help the size as you require |
Length | 2000mm,2440mm(8feet),2500mm,3000mm,3048mm(10feet),5800mm, 6000mm or we can make the length as you require |
Application | Steel sheet applies to construction field, ships building industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heatexchanger, machinery and hardware fields. Fast delivery. Quality assured.Welcome to order more |

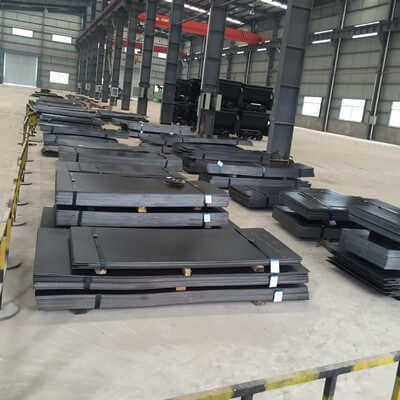

production workshop
production workshop
production workshop
production workshop
