304 stainless flat bar Physical Description
In the air or chemical corrosive medium can resist corrosion of a kind of high alloy steel, stainless steel is a beautiful surface and good corrosion resistance, do not have to go through plating and other surface treatment, and play the inherent surface properties of stainless steel, used in many aspects of steel, usually known as stainless steel. Representative properties of 13 chromium steel, 18-8 chromium nickel steel and other high alloy steel.The use of stainless steel flat steel:1, used for making rivets, nuts, etc.2. Used for making spring rings.
10、Linear expansion coefficient (10-6·K-1) : (0~100℃) 17.2, (0~500℃) 18.4
11、Resistivity (20℃, 10-6Ω·m2/m) : 0.73
12、Longitudinal modulus of elasticity (20℃, KN/mm2) : 193
304 stainless flat bar chemical composition
Chemical Composition (%) of 304 Stainless Steel
| Chromium | Nickel | Carbon | Manganese | Phosphorus | Sulfer | Silicon | Nitrogen |
| 18.0 min.-20.0 max. | 8.0 min.-10.5 max. | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 0.10 |
304 stainless flat bar mechanical property
Mechanical Properties of 304 Stainless Steel
| Tensile Strengtd min | Yield Strengtd min | Elongation min | Hardness max |
| 75 ksi | 30 ksi | 40% | 95 HRB |
304 stainless flat bar specification
Product Name | 304 Stainless Steel Flat Bar |
Standard | AiSi, ASTM, bs, DIN, GB, JIS, JIS, AISI, ASTM, GB, DIN, EN, etc |
Grade | Stainless Steel |
Width | 3mm - 300mm or customizable |
Length | 0.1m - 12m or As Customers' Requirements |
Application | Construction/Decoration |
Technique | Hot Rolled |
Special Use | Mold Steel |
Tolerance | ±1% |
Alloy Or Not | Non-Alloy |
Delivery Time | within 7 days |
Key Word | Stainless Steel Flat Bar |
MOQ | 1 ton |
Material | 200 Series/300 Series/400series |
Technology | hot rolled/cold drawn/slit |
Surface | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
Thickness | 0.14-400mm or customizable |
Edge | Mill Edge Slit Edge |
Price Term | CIF CFR FOB EX-WORK |
Payment terms | L/C T/T (30% Deposit) |

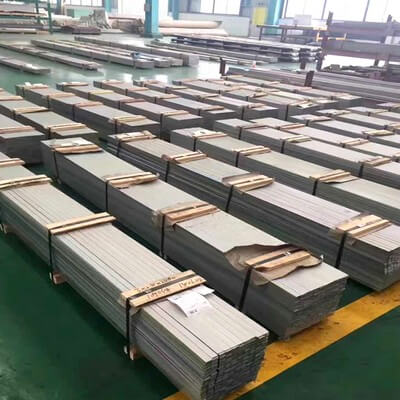

production workshop
production workshop
production workshop
production workshop
Search more
| 5/16 stainless steel square rod | 1/2 stainless steel rod |
| 5/8 stainless steel rod | 3/4 stainless steel rod |
| stainless steel rod 1/4 | 1/4 inch stainless steel rod |
| stainless steel rods 1 2 | 9/16 stainless steel rod |
| 1 16 stainless steel rod | stainless steel threaded rods |
| 10mm stainless steel rod | 3/16 inch stainless steel rod |
| 12mm stainless steel rod | 304 stainless steel rod |
| 5 32 stainless steel rod | 5/16 stainless steel rod |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
