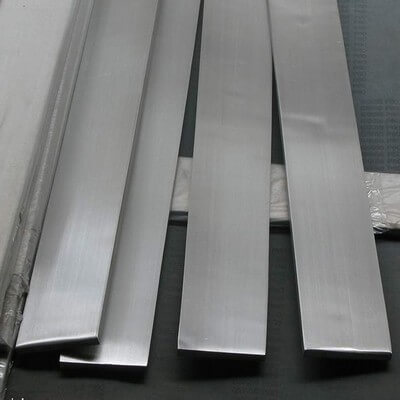

416 stainless steel flat bar Description
416 stainless steel flat bar is a martensitic free-working grade stainless steel that can be hardened by heat treatment to increase strength and hardness. Due to its low cost and ease of processing, 416 stainless steel is easy to use in its highly tempered state. It exhibits better processing characteristics than the austenite grade, but at the expense of corrosion resistance. High sulfur and easy cutting grades such as Alloy 416 are not suitable for ships or any chloride exposure.416 stainless steel low carbon content, good corrosion resistance, 416 is easy cutting martensitic stainless steel, can be enhanced by heat treatment, 416 strength and machinability than 304 and 316, the friction coefficient is small, but the corrosion resistance is not as good as 304 and 316.
416 stainless steel flat bar application
416 stainless steel is stainless steel easy cutting performance of better steel, 416 stainless steel is mainly used for solenoid valve, micro motor and electrical components production. The materials are free cutting stainless steel, especially suitable for automatic lathes, CNC lathes mass production.
1、Pump shaft
2、‘Valve assembly
3、Automatic screw machine parts
416 stainless steel flat bar chemical composition
Chemical Composition (%) of 416 Stainless Steel
| C | Mn | Si | P | S | Cr |
| 0.15 | 1.25 | 1.00 | 0.06 | 0.15 | 12.0-14.0 |
416 stainless steel flat bar physical properties
Physical Properties of 416 Stainless Steel
| Density kg /m3 | Thermal Conductivity W/mK | Electrical Resistivity (Microhm/cm) | Modulus of Elasticity | Coefficient of Thermal Expansion µm/m/°C | Specific Heat (J/kg.K) | Specific Gravity |
| 7750 | 24.9at 212°F | 43 at 68°F | 200 GPa | 9.9 at 32 – 212°F | 460 at 32°F to 212°F | 7.7 |
416 stainless steel flat bar specification
Product name | 416 stainless steel flat bar |
200 series: 201,202,202Cu,204Cu, 202 sizes 80x25 steel flat 304U steel flat | |
300 series: 301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330, | |
400 series: 409/L,410,416/F,420/F,430,431,440C,441,444,446, stainless steel flat | |
600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D, steel flat bar | |
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760,2304,LDX2101.LDX2404,LDX4404,904L stainless flat steel bar 304 price | |
Others: 153Ma,254SMo,253Ma,654SMo,F15,Invar36,1J22,N4,N6 etc | |
Surface finish | Black,bright,rough turned,grinding,centreless Ground etc mirror flat steel bar |
Diameter | 0.5-500mm |
Tolerance | H8,H9 or as required |
Length | <12000mm or according to customer's special request |
Technique | Hot Rolled,Cold Rolled,Cold Drawn,Forged 44 |

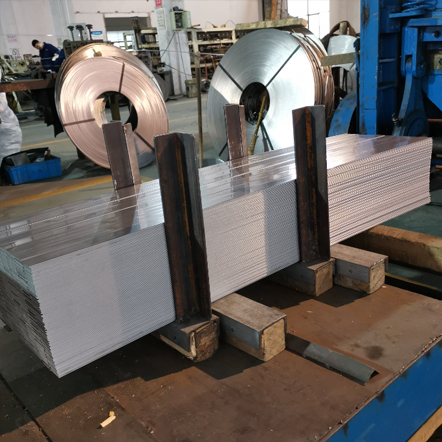

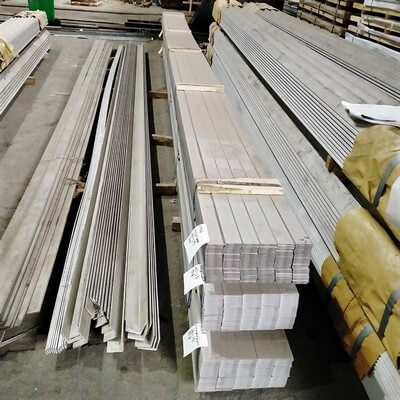

production workshop
production workshop
production workshop
production workshop
Search more
| stainless steel threaded rod 1/2 | 1 8 stainless steel rod |
| stainless steel 1/2 rod | 1/4 stainless steel rod |
| 1 mm stainless steel rod | stainless steel guide rod |
| 316 stainless steel rod | stainless steel 1/8 rod |
| 5 16 stainless steel rod | stainless steel rod 3/16 |
| 5 8 stainless steel rod | 1 2 stainless steel rod |
| 1 4 inch stainless steel rod | 3/8 stainless steel rod |
| 1/2 in stainless steel rod | 1/8 stainless steel rod |
Application
Our steel products are mainly used in chemical industry, petrochemical industry, offshore, seawater pipeline, desalination plant, nuclear engineering, paper and pulp industry.
Our export country
We are a well known worldwide supply and export stainless steel flat bar in following countries：,Italy, Philippines, France，Ireland, Portugal, Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Libya, Romania, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Ghana, Slovakia, Germany, Saudi Arabia, Afghanistan, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece, Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus, Finland, Gabon, Iran, Canada, Argentina, Lebanon.
